Product Attribute:
Power:15kw
Voltage:380/220v
External Size:7050x5500x3500 mm(LWH)mm
Internal Size:6900 * 3900 * 2600mm
Blower capacity:25000m3/h
Color:Red
Applicationt:
all small cars shorter than 5m
Production Description:

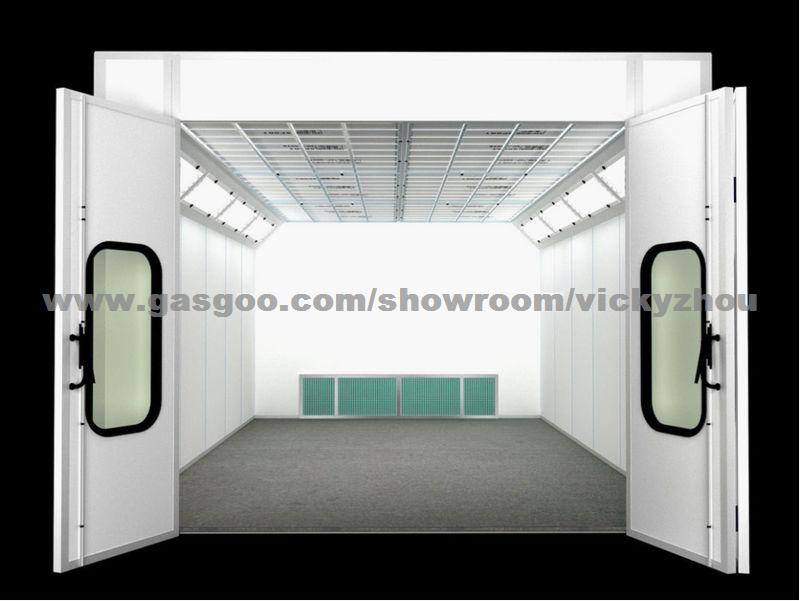

Ceiling Filter Auto Spraying Rooms, Customized Side Draft Paint Booth
Detailed Product Description
Detailed Product Description
Ceiling Filter Auto Spraying Rooms, Customized Side Draft Paint Booth
Preparation Area, Painting Spraying And Dry Portable Large Spray Booth With Back Generator
Diesel Heat energy Industrial Large Spray Booth, Bus Or Auto Painting Drying Room
Car Care Down Draft Spray Booth, Auto repair painting and baking Room (OEM)
Automobile, Vehicle, Furniture Painting Down Draft Spray Booth, Room With 3 -Fold Door
Ventilation System Vertical Down Draft Spray Booth, Station for Auto Painting
Auto Care Painting, Baking, Polish Down Draft Spray Booth with Italian Riello burner G20
Stainless steel heat exchanger Auto Spray Booths for car repair, painting, baking
Automobile Maintenance Baking, Drying, Auto Spray Booths And Repair Painting Room
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floor
Car painting, Automobile Baking, Portable Auto Spray Booths
1. Italian Riello RG5S diesel burner
2. SUS304 Stainless steel heat exchanger
3. Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
|
Inside Dimension |
6900X4000X2900MM(LXWXH) |
|
Outside Dimension |
7000X5600X3250MM(LXWXH) |
|
Main door |
3-fold, 2700X2500MM(WXH), with heat insulation glass window,
handmade door without aluminum alloy door frame |
|
Personal door |
1-fold, 650X1800MM (WXH) with one step. There is two sets of pressure lock
which will automatically open when the pressure inside is over the limite. |
|
Booth System |
Wall panel :EPS(epispastics polystyrene) heat preservation panel double skinned ,
tongue and groove construction, thickness: 50mm EPS , steel thickness0.5mm . |
|
Lighting System |
Upper light: 3Pcs X8units=24PcsX36W, Phillip brand light tube with PAK light holder |
|
Generator setting type |
Side back intake air or rear, quadrate steel frame, coated steel plate |
|
Ventilation System |
Intake fan:1X 7.5KW turbo fan, direct drive, air capacity:23000m3 /h
Air Speed: 0.22m/s |
|
Exhaust fan: 1X5.5PCS double-intake centrifugal fan for exhaust air, air capacity:18000m3 /h |
|
Heating system |
Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min. |
SUS304 Stainless steel heat exchanger, highest temperature 80C, 1pc electric damper
from spraying to baking cycle. Reasonable structure, safe and reliable,
big heat exchanging area, high heat utilization, more than 87.1% heat exchanging rate |
|
Filter system |
Prefilter, high efficiency filter(ceiling filter), floor filter |
|
Control system |
Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switc |
