Applicationt:
all the cars
Production Description:
-

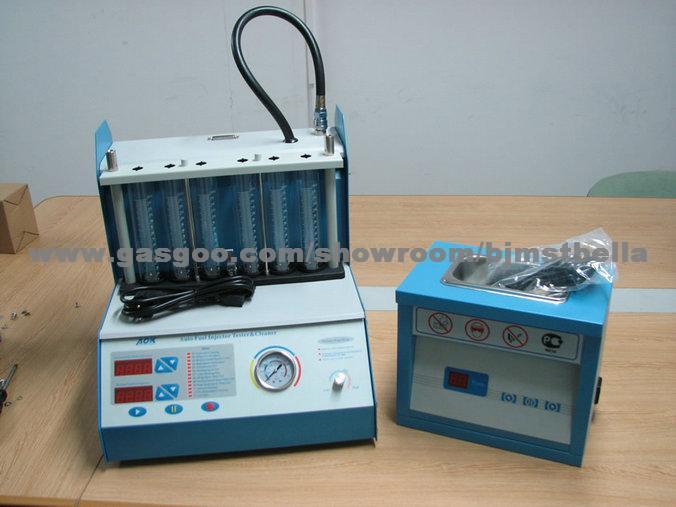

Fuel Injector Tester & Cleaner A360:
-
FEATURES:
1. LED display;
2. Ultrasonic cleaning trough built-in;
3. Tool trolley make it more conveniently to operate;
4.Equip with high quality SIEMENS pump, make it endurable;
5.It can test and clean at the same time.
FUNCTIONS:
1.Ultrasonic cleaning , dismantle the carbide of the injector;
2.injector test. stimulate engine runing condition, test injector in different speed range,Check and test injectorss injection situation:atomization/sprayingangle/spraying mount/spraying uniformity;
3.leakage and block test;
4.Uniquely designed various compound bonder for all kinds of side-inlet injectors;
5.With reverse flush function, to clean inside out, to improve clean efficiency;
6.With a set of adaptors to clean injectors without dismantling it from the engine;
SPECIFICATIONS
Turning speed range: |
0~7500r/min |
|
Timing pulse iength: |
0~9900times/step length 100 |
|
Pulse iength: |
0-20ms step length 0.1ms |
|
Timing: |
0~10min |
|
System pressure: |
0~0.6Mpa |
|
Ultrasonic cleaning power: |
70W |
|
Power supply: |
AC220+-10% 50/60Hz |
|
Working temperature: |
10°C~40°C |
|
Stimulant signals: |
0+-5V |
|
Output scope of the pulsed signals: |
+5V,+12V |
|
Mainbody MEAS580×540×495mm 21Kg |
|
Sand MEAS: 590×505×790mm 24Kg |
