Applicationt:
Audi ( A6l(china))
Audi ( A4l(china), A4(china), A1, A8, A5, R8, Q7, Q5, Tt, S6, S4, Allroad)
Skoda ( Octavia(china), Superb(china), Fabia(china), Octavia, Fabia, Superb)
Vw ( Phaeton, New Bettle, Touareg, Eos, T5, Magotan)
Production Description:

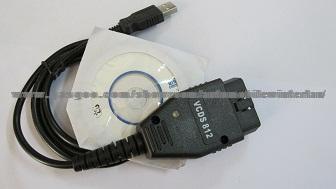

VAG-COM VCDS 812
Detailed Description
1.USB connector plugs into most modern laptops!
2.Compatible with the latest cars which require a direct CAN connection for diagnostics including all Golf-5 platform cars and latest Audi A3, A6 and A8.
3.Protocol timing indistinguishable from a real VAG/VAS tool. Works reliably even with "difficult" control modules such as the 1991-1994 1Z Audi TDIs and the 1993-1994 Audi 2.6L with Hella ECU.
4.Built-In VAG-Saver functionality -- instantly alerts the user if either the K/K1 line or the L/K2 line is shorted to Ground or Vbatt.
5.Full support for dual-K lines found in "new" (B6/8E chassis Audi A4 and 2002+ Audi A6 -- no VAS-6017 required -- no manual switches!
6.Fully backwards compatible with older cars using a single K-line or K plus L.
7.Bi-Color (red/green) status/activity LED
Diagnostics Type including:
All Golf-5 platform cars (A5 platform) including:
2003+ VW Touran (1T chassis)
2004+ VW Golf (1K chassis)
2004+ VW Caddy (2K chassis)
2004+ Audi A3 (8P chassis)
2004+ Seat Altea (5P chassis)
2004+ Skoda Octavia (1Z chassis)
2005+ Seat Toledo (5P chassis)
2005+ Golf Plus (5M chassis)
2005+ Seat Leon (1P chassis)
2005.5+ Jetta (1K chassis)
2006+ Eos (1F chassis)
2003+ Audi A8 and A8L (D3 platform, 4E chassis)
2005+ Audi A6 (C6 platform, 4F chassis)
2005+ Audi A4 ("B7" platform) (some control modules)
2005.5+ VW Passat (B6 Platform, 3C chassis)
2006+ Audi Q7 (4L chassis)
2007+ Audi R8 (42 chassis)
2007+ Audi TT (8J chassis)
2007+ VW Touareg (7L6 chassis) ("facelift", built after Nov. 30 2006)
2009+ Audi A4 ("B8" platform)
Packages Included
VCDS 812 Cable
CD
