Height:of driving shaft: 125mm

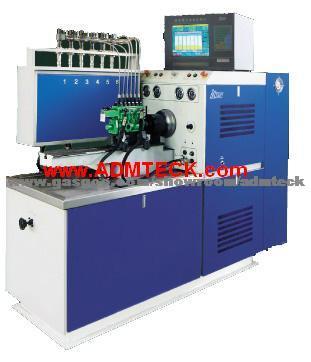

Technical specification: 1. Motor power: . 5. 5, 7. 5, 11, 15, 18. 5, 22kw 2. Power supply voltage: 415, 380, 220v 3. Power supply frequency: 50/ 60 HZ 4. Protection level: IP54 5. Speed range: 0- 4000 rpm 6. Counter setting range: 0- 9999 7. Temperature setting range: 0- 80 8. Center height of driving shaft: 125mm 9. DC power: 12/ 24V 10. Diameter of the Driving connector: 120mm 11. Measuring range: 0- 500ml 12. Number of Measuring cylinder: 6, 8, 12 13. Oil Supply pump: 10L/ Min 14. Oil supply pressure: High pressure: 0- 40bar; Low perssure: 0- 4bar 15. Oil tank cubage: 60L 16. Pressure meter: Low pressure: 0- 6bar; High pressure: 0- 60bar; Inner pressure: 0- 16bar; Vacuum pressre: - 1- 2. 5bar; Oil meter: 0- 10bar 17. Heat Power: 2kw 18. Temperature controlled range: 30- 65 19. Size: 2300*1100*1650mm 20. Weight: 950kg
