Product Attribute:
Applicationt:
All kinds of machines
Production Description:
Polyester Spiral Press Filter Belt
Belt for steam press (Dynastin)/fabric belts
Belt for steam press (Dynastin), fabric belts- item 2&3
Model: Htmillde loop1
Dimensions: w=2650mm x 1=11940 mm with mech.fastener (joining seam wire)
W=2650 x 1=5100 mm with mech.fastener (joining seam wire)
Material :Polyester 100%
Permeability: 360 cfm
Thickness: 2.50mm
Warp Dia: 0.70mm
Weft dia: 0.90mm
elongation at failure: 18-20%
Apply working temerature(MAX): 150
According your specification sheet require, We have two items suit your requirement :
type |
Thread diameter-mm |
Weight
Kg/m2 |
Thickness
mm |
CFM air permeability |
|
warp |
weft |
Suffed wire |
|
Middle loop-1 |
0.70 |
0.90 |
0.9*3 |
1.85 |
2.50 |
360cfm (meet range cfm200-400) |
|
Middle loop-2 |
0.70 |
0.90 |
Flat mono 2.4*0.85 |
1.85 |
2.45 |
500cfm (same with your photo detail) |

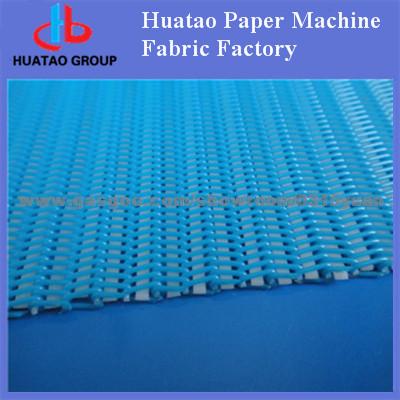

Polyester Spiral Press Filter Belt:
This kind of polyester spiral belt is made of polyester spiral dryer fabric which is filled with stuff to reduce the air permeation and to intensitive the opening, hence to reduce the material loss from the mesh opening.
Polyester spiral press filter belt is suitable for high-pressure press-filter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer. It has been extensively used in all kinds of industries such as printing and dying, food, salt industry, pharmaceutical, environment protection, process hides, shoe-making, clothing, pottery and other conveyable belt est.
Description
Polyester Spiral Filter Belt
This kind of polyester spiral belt is made of polyester spiral dryer
fabric which is filled with stuff to reduce the air permeation and to intensitive the opening, hence to reduce the material loss from the mesh opening.
Specification:
Model: super loop, large loop, middle loop, small loop
CFM: 280-570
Thickness: 1.87-3.03 mm
Weight: 1.5-2.3 kg/m2
Suitable for:
high-pressure press-filter washer,
horizontal belt washer,
pulp-liquor separator and netting belt coal-washer.
Used in:
all kinds of industries such as printing and dying, food, salt industry, pharmaceutical, environment protection, process hides, shoe-making, clothing, pottery and other conveyable belt est.
Huatao Paper Machine Fabric Factory founded in 1980, is professional manufacturer & Exporter of paper machine cloth products.
Our main Products including : Forming wire(fabric), Dryer screen, Press felt, Spiral dryer screen, Sludge dewatering mesh ,Corrugator Belt, S.S wire cloth , Shrinking Fabric ect. We would like to open more market of paper machine clothing through joint-effort with all customers!
