Quick Details

• Inner diameter:

  150mm

• Number of Row:

  Single Row

• Bore Size:

  150mm

• Outer Diameter:

  240mm

• Size:

  40mm

• Type:

  Roller Bearing

• Number of retaining screws:

  2

• Number of fixing holes in outer ring:

  33

• Number of extraction threads:

  3

• Fixing holes in inner ring:

  6.2mm,7mm,11mm,165mm

• Fixing holes in outer ring:

  7mm,225mm

• Extraction thread:

  M8

• Pitch t:

  36 X 10 degree

• Screw tightening torque:

  14 Nm

• Basic dynamic load rating axial:

  81000 N

• Basic static load rating axial:

  380000 N

• Limiting speed:

  3600 r/min

• CET1:

  ISO 9001 2008

• CET2:

  TUV

• Place of Origin:

  China/CN

• OE Experience:

  No

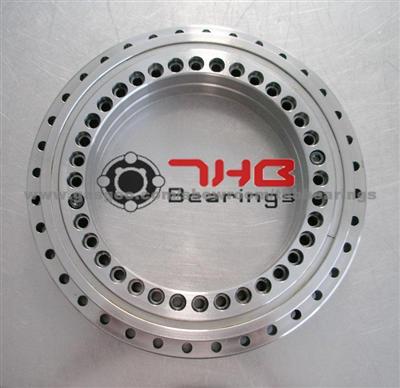

Product Name:ZKLDF150A High Precision Bearings For Ball Screws In Machine Tools

ZKLDF150A High Precision Bearings For Ball Screws In Machine Tools

Application

ROTARY BEARING

Product Description:

 ZKLDF150 rotary table bearing: ZKLDF150 are low-friction, high accuracy for very high speeds, high axial and radial loads and high demands on tilting rigidity. These bearings are particularly suitable for precision applications involving combined loads.Their preferred areas of use are bearing arrangements in rotary tables and honing heads as well as measurement and testing equipment.

Limiting speeds: ZKLDF150 rotary table bearing allow the limiting speeds given in the dimension tables. The operating temperatures occurring are heavily dependent on the environmental conditions. Calculation is possible by means of a thermal balance analysis based on frictional torque data.

Bearing preload:Once the bearings have been fitted and fully screw mounted,they are radially and axially clearance-free and preloaded.

Temperature differences:Temperature differences between the shaft and housing influence the radial bearing preload and thus the operating behaviour of the bearing arrangement. If the shaft temperature is higher than the housing temperature,
the radial preload will increase proportionally, so there will be an increase in the rolling element load, bearing friction and bearing temperature.If the shaft temperature is lower than the housing temperature,the radial preload will decrease proportionally, so the rigidity will decrease to bearing clearance and wear will increase.
