Quick Details

• Type:

  other

• Material:

  Alloy

• O.D:

  customizedmm

• Weight:

  actualkg

• Width:

  customizedmm

• Place of Origin:

  China

• Samples:

  Charge

• Sample Price:

  actual price

• Delivery Time:

  5-7 Days After Receipt Of Payment

• Packing:

  By Steel Drums, Then Packed By Pallet

• Delivery Port:

  Any Port In China

• Max. Production Capacity:

  200 Tons Per Year

• Export Ratio:

  51% - 60%

• OE Experience:

  No

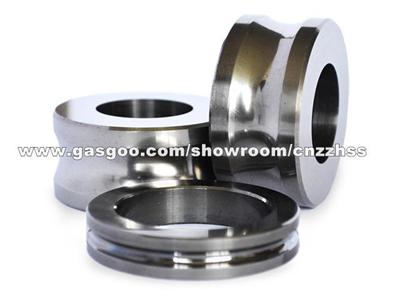

Product Name:Ceramic Guide Roller Tic-Based Guide Rollers As Steel Rolling Mill Machine Spare Part

Ceramic Guide Roller Tic-Based Guide Rollers As Steel Rolling Mill Machine Spare Part

Application

HASTION

Product Description:

OEM No/Model: GT35
  1. Product Introduction

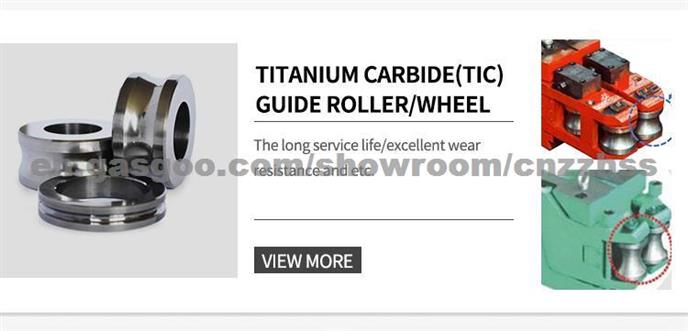

Guide roller is a metallurgical rod guide roller, which is the main consumption spare part in the high-speed wire finishing production process of the steel rolling mill in the steel field, also known as the high-speed finishing guide, guide roller or titanium carbide roller, ensure the red steel smoothly enters the wheel groove, prevent from the winding and tailing and guides clamping. The TiC guide wheel has the high hardness, long service life, excellent wear resistance, good impact resistance, very low friction coefficient and self-lubricating performance and good oxidation and corrosion resistance as well.


For the rolling mill, guide rollers (also called ring rollers, guide wheel) is an indispensable part of wires export in the wires rolling process, it must be accorded with the requirements of high rigidity, good wear resistance (the service life is matched with the high-quality bearing), good thermal conductivity, a certain of red hardness, especially the high speed wires rolling (rolling speed is among 80-120m/s). In the current market, most of the guide wheels are manufactured by steel materials (especially in the domestic market), which have the weak wear resistance, short service life and high frequency replacement, so the scale benefit of wire materials is restricted. However, steel-bonded cemented carbide has the obvious strengths on this aspect.

2. Product Application

2.1 Lighter than Tungsten carbide roller by 55%, Lighter than tool steel than 20%, so the guide roller accelerates from standstill to 35,000 rpm, without damaging the bearing.

2.2 Very low coefficient of friction and self-lubricating properties, so the working portion of the guide roller is less worn, and the production can be greatly increased

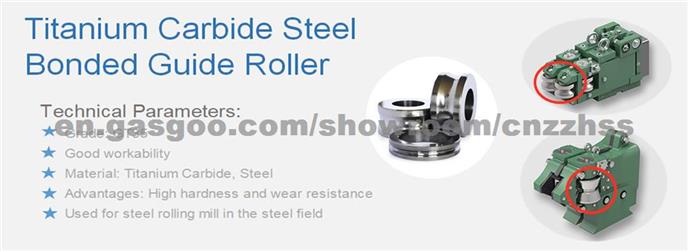

2.3 The coefficient of thermal expansion is close to that of the bearing steel. When the quenching is hot, the bearing will not get stuck. The thermal expansion coefficients of titanium carbide cemented carbide and tungsten carbide hard alloy are very different from those of steel. Therefore, the steel bonded carbide guide roller is more advantageous for bearing anti-seize ability than the two cemented carbide guide rolls.

2.4 The micro structure is titanium carbide and high chromium tool steel, which has good thermal fatigue resistance.

2.5 Anti-oxidation, less magnetic, non-stick steel.

2.6 Annealing hardness is only HRC45-48, easy to process, after quenching, only a little fine grinding can be processed into finished products, the processing cost is low, so the price is also low. This is also one of the main reasons why titanium carbide guide rolls are superior to tungsten carbide guide rollers.

2.7 Hardness HRC62-67, good wear resistance. The service life is 8-10 times that of high speed steel.

2.8 Absolutely dense, the pores are almost zero, so it will not break when used and can be reused.

2.9 Compared with similar foreign products, the price of Miller MT10 is lower, which greatly saves the production cost of customers.


Will you want a try? I will always try my best to support you!

How to contact with us?

Phone: +86-731-22891182

WeChat: 152 7336 6356

Address: Yintai Square, Zhuzhou City, Hunan Province, China(Office)

Website: www. hastion.com

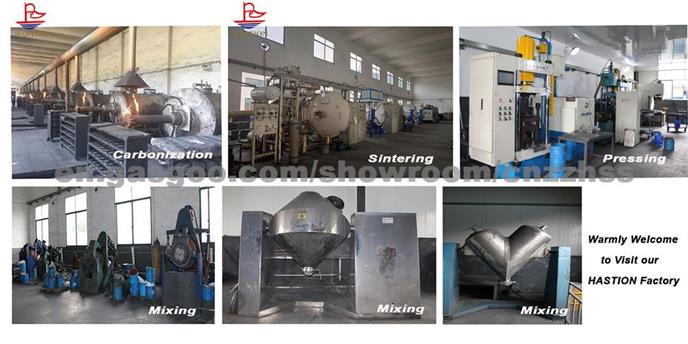

Our factory is in yanling, Zhuzhou of Carbide centralized place,which occupies an area of 60,000 square meters and a planned factory area of 50,000 square meters. Now HASTION have 2 different productions lines, one is the raw material metal compound and elemental ...[Read More]

Company Profile:

• Main Product:

  Titanium Carbide Rod; Titanium Carbide Guide Roller; Tic Rod; Titanium Carbide Powder

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa
