Deep Drawing Hydraulic Press

    • Application: Acura
    • Market Type:After Market
    • EXW Price: Inquiry For It?
    • Payment Terms: L/C, T/T
    • Samples: Not Available
    • Minimum Order: 1Set/Sets

Quick Details

  • Place of Origin:

    Dongguan

  • Samples:

    Not Available

  • Delivery Port:

    Shenzhen Or Guangzhou

  • Max. Production Capacity:

    1000 Sets/Month

  • Export Ratio:

    51% - 60%

  • OE Experience:

    No

Product Name:Deep Drawing Hydraulic Press

Deep Drawing Hydraulic Press

Application

Acura

Product Description:

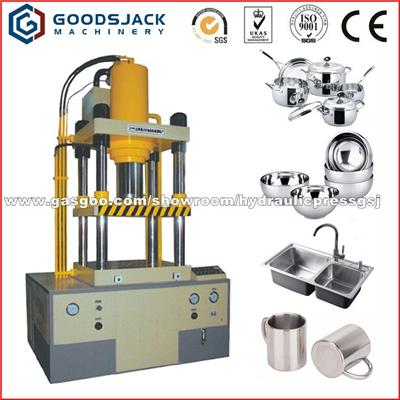

4 Column Deep Drawing Hydraulic Press

 4 Column Double Action Deep Drawing Hydraulic Press






1. Advanced two way cartridge valve system ensures high reliability and much less hydraulic shock direction change.

2. Main hydraulic cylinder is made of alloy cast steel and its inner surface is finely grinded for life under high pressure.

3. Four columns are made of alloy steel with high tensile resistance and finely grinded and electro-plated with hard chrome.

4. Key hydraulic and electric units adopted are famous brands from Germany USA and Japan.

5. Fast approaching speed of movable working table creates higher production efficiency.

6. A hydraulic ejector is installed on movable working table for knocking out workpiece after drawing.





1. Deep drawing and forming of tableware, kitchenware, metal cover of electric motor, household appliances and lighting ware etc.

2. Trimming stamping deep drawing and edge-cutting of metal or none-metal workpiece.

Deep Drawing Hydraulic Press Products







Model Units Specificatons
DSF-50 DSF-120 DSF-220 DSF-220L DSF-275 DSF-350 DSF-350L DSF-500 DSF-500L DSF-600
Main cylinder Rated capacity Ton 35 85 160 160 200 260 260 350 350 420
Max.stroke mm 350 450 560 560 560 560 560 600 600 700
Blank holding cylinder Rated capacity Ton 15 35 60 60 75 90 90 150 150 180
Max.stroke mm 175 200 260 260 260 600 260 300 300 350
Knocking out ejector Rated capacity Ton 2 3 5 5 5 5 5 10 10 10
Max.stroke mm 150 180 200 200 200 220 220 250 250 300
Open height mm 600 730 900 1000 900 900 900 1000 1200 1500
Height of fixed working table mm 990 1055 1080 1100 1100 1200 1200 1550 1600 1700
Approaching speed of M.W.T. mm/s 195 220 210 210 210 200 200 210 210 190
Drawing speed of M.W.T. mm/s 25 20 20 20 19 17 17 18 18 14
Returning speed of M.W.T. mm/s 180 220 200 200 200 165 165 190 190 180
Ascending speed of blank holding cylinder mm/s 120 50 120 120 115 160
