Quick Details

• Inner diameter:

  600mm

• Number of Row:

  Single Row

• Bore Size:

  600mm

• Outer Diameter:

  700mm

• Size:

  40mm

• Type:

  Roller Bearing

• CET 1:

  ISO9001 2008

• CET 2:

  TUV

• Roller pitch diameter Dpw:

  650

• Chamfer:

  3r/min

• Shoulder height ds:

  627mm,673mm

• Static load rating:

  264 N.m

• dynamic load rating:

  721N.m

• Radial run out of outer ring:

  25um

• Axial run out of outer ring:

  25um

• Tolerance for inner ring:

  -40/0um

• Height tolerance of inner ring:

  -150/0um

• Height tolerance of outer ring:

  -200/0um

• Radial clearance/starting torque:

  -20/0um

• Quality silmilar to:

  THK/IKO/INA

• Place of Origin:

  China/CN

• Samples:

  Not Available

• Delivery Time:

  Asap

• Packing:

  Industrial Packing

• Delivery Port:

  Shanghai, China

• Max. Production Capacity:

  10000

• Export Ratio:

  5% - 10%

• OE Experience:

  No

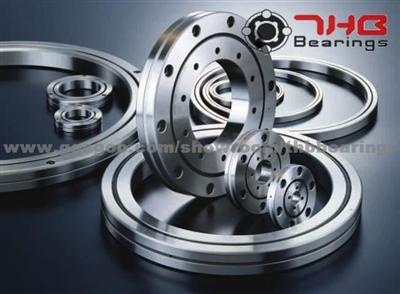

Product Name:THB'S Cross Roller Bearing RE Series Equivalent To THK/INA/IKO For Manipulators, Robots,Machine Tools, Speed Reducers

THB'S Cross Roller Bearing RE Series Equivalent To THK/INA/IKO For Manipulators, Robots,Machine Tools, Speed Reducers

Application

RoRKS

Product Description:

OEM No/Model: RE60040 UU CC0 P6

THB's Cross roller bearing RB series's characteristics:

RE series(inner ring division type with outer rotating), which is also the basic type of crossed roller bearings. The size is the same with that of RB series. The inner rings have two parts, and the outer ring is one integer. Thy type is wel apply to the situation which need high rotation accuracy on outer ring.
Part No.
RE2008;RE2508;RE3010;RE3510;RE4010;RE4510;RE5013;RE6013;RE7013;RE8016;RE9016;RE10016;RE10020;RE11020;RE11012;RE11015;RE12016;RE12025;RE12025;RE13015;RE13025;RE14016;RE14025;RE15013;RE15030;RE16025;RE17020;RE18025;RE19025;RE20025;RE20030;RE20035;RE22035;RE22025;RE24025;RE25025;RE25030;RE30025;RE30035;RE30040;RE35020;RE40035;RE40040;RE45025;RE50040;RE50050;RE60040
