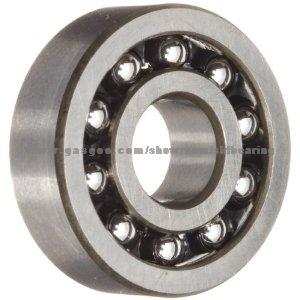

6315M/C3VL0241 SKF Insocoat Ball Bearings
SKF INSOCOAT deep groove ball bearingsare identified by the designation suffix VL0241, bearing 6315M/C3VL0241 has the outside diameter and side faces of the outer ring coated with aluminium-oxide. SKF INSOCOAT bearing with suffix VL071 provides enhanced protection against high frequency electric currents due to the smaller coated surface area of the inner ring compared to the outer ring.
The technical datasheet for SKF 6315 M/C3VL0241:
Type: Deep groove ball bearings, single row, INSOCOAT, brass cage
Dimension: 75mm x 160mm x 37mm
Basic load capacity: 76.5KN 119KN
Running speed: 5600 r/min 9000 r/min
Weight: 3.05 KGS
Origin: made in France
There are many more Part no. of SKF INSOCOAT deep groove ball bearings,
<td sty
SKF BearingP/N.: |
d | D | B | M |
mm | mm | mm | kg | |
6314/C3VL0241 | 70 | 150 | 35 | 2,5 |
6215/C3VL0241 | 75 | 130 | 25 | 1,2 |
6315/C3VL0241 | 75 | 160 | 37 | 3,05 |
6216/C3VL0241 | 80 | 140 | 26 | 1,4 |
6316/C3VL0241 | 80 | 170 | 39 | 3,55 |
6217/C3VL0241 | 85 | 150 | 28 | 1,75 |
6317/C3VL0241 | 85 | 180 | 41 | 4,1 |
6218/C3VL0241 | 90 | 160 | 30 | 2,4 |
6318/C3VL0241 | 90 | 190 | 43 | 4,9 |
6219/C3VL0241 | 95 | 170 | 32 | 2,5 |
6319/C3VL0241 | 95 | 200 | 45 | 5,65 |
6220/C3VL0241 | 100 | 180 | 34 | 3,15 |
6320/C3VL0241 | 100 | 215 | 47 | 7 |
6222/C3VL0241 | 110 | 200 | 38 | 4,25 |
6322/C3VL0241 | 110 | 240 | 50 | 9,65 |
6224/C3VL0241 | 120 | 215 | 40 | 5,2 |
6324/C3VL2071 | 120 | 260 | 55 |
