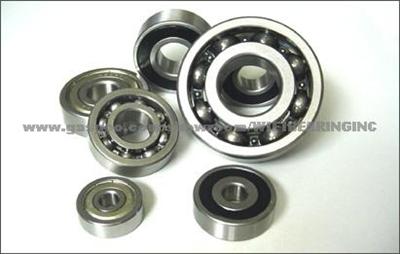

It is made of 4 components: Inner ring, Outer ring, Cage and Steel ball.
1. It has below structures/types:
a.Single deep groove ball bearing
b. Single deep groove ball bearing with shield
c. Single deep groove ball bearing with shield and rubber seal
d.Single deep groove ball bearing with snap ring/race on outer ring.
2. Dimention range:
a. Inner Diameter:10mm ~ 1320mm
b. Outer Diameter:30mm ~ 1600mm
c. Width Dimention: 9mm ~ 300mm
3. Tolerance
As per Chinese Standard :GB307.1
4. Cage Material
We use brass material or stamped steel, usually for OD<400mm, DNI use stamped steel material; OD>400mm, DNI use brass material mostly.
5. Allowable Angular Erro
As per Radial clearance:
Basic Group: 8'
The 3rd Group:12'
The 4th Group:16'
