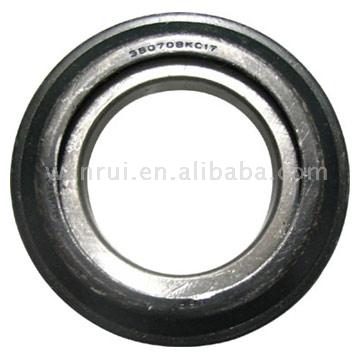

Image for Thrust Ball Bearing d10~50mm

Thrust Ball Bearing d10~50mm

Application: Auto
Market Type:After Market
FOB Price: Inquiry For It?
Payment Terms: L/C, T/T
Minimum Order: 500 Piece/Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Place of Origin:
Zhejiang, China (Mainland)
Delivery Time:
0
Packing:
Industry packing
Delivery Port:
Ningbo/Shanghai
OE Experience:
No

Product Name:Thrust Ball Bearing d10~50mm

Thrust Ball Bearing d10~50mm

Application

Auto

Product Description:

Thrust Ball Bearing Type series: d10~50mm,d50~100mm,d100~200mm,d200~350mm.High quality and competitive price.

1.Thrust ball bearing character

Thrust ball bearing consist of a shaft washer,a housing washer and a ball and cage thrust assembly.

2.Thrust ball bearing type---Table as follow:

	Boundary dimensions			Basic load ratings		Limiting speeds		Mass	Bearing
d	mm			N		RPM		kg	No's
d	D	T	rs min	dynamic Cr	static Cor	Grease	oil	kg	No's
10	24	9	0.3	10 000	14 000	6 700	9 500	0.021	51100
10	26	11	0.6	12 700	17 100	5 800	8 300	0.030	51200
12	26	9	0.3	10 300	15 400	6 400	9 200	0.023	51101
12	28	11	0.6	13 200	19 000	5 600	8 000	0.034	51201
15	28	9	0.3	10 500	16 800	6 200	8 800	0.024	51102
15	32	12	0.6	16 600	24 800	5 000	7 100	0.046	51202
17	30	9	0.3	10 800	18 200	6 000	8 500	0.026	51103
17	35	12	0.6	17 200	27 300	4 800	6 200	0.054	51203
20	35	10	0.3	14 200	24 700	5 200	7 500	0.040	51104
20	40	14	0.6	22 300	37 500	4 100	5 900	0.061	51204
25	42	11	0.6	19 600	37 000	4 600	6 500	0.060	51105
25	47	15	0.6	27 800	50 500	3 700	5 300	0.111	51205
30	47	11	0.6	20 400	42 000	4 300	6 200	0.069	51106
30	52	16	0.6	29 300	58 000	3 400	4 900	0.139	51206
35	52	12	0.6	20 400	44 500	3 900	5 600	0.085	51107
35	62	18	1	39 000	78 000	2 900	4 200	0.215	51207
40	60	13	0.6	26 900	63 000	3 500	5 000	0.125	51108
40	68	19	1	47 000	96 500	2 700	3 900	0.276	51208
45	65	14	0.6	27 000	69 000	3 200	4 600	0.148	51109
45	73	20	1	48 000	105 000	2 600	3 700	0.317	51209
50	70	14	0.6	28 800	75 500	3 100	4 500	0.161	51110
50	78	22	1	48 500	111 000	2 400	3 400	0.376	51210
55	78	16	0.6	35 000	93 000	2 800	4 000	0.226	51111
55	90	25	1	69 500	159 000	2 100	3 000	0.606	51211
60	85	17	1	41 500	113 000	2 600	3 700	0.296	51112
60	95	26	1	73 500	179 000	2 000	2 800	0.676	51212
65	90	18	1	41 500	117 000	2 400	3 500	0.338	51113
65	100	27	1	75 000	189 000	1 900	2 700	0.767	51213
70	95	18	1	43 000	127 000	2 400	3 400	0.356	51114
70	105	27	1	76 000	199 000	1 800	2 600	0.793	51214
75	100	19	1	44 500	136 000	2 200	3 200	0.399	51115
75	110	27	1	77 500	209 000	1 800	2 600	0.874	51215
80	105	19	1	44 500	141 000	2 000	3 000	0.422	51116
80	115	28	1	77 500	218 000	1 700	2 200	0.916	51216
85	110	19	1	46 000	150 000	2 000	3 000	0.444	51117
85	125	31	1	78 500	264 000	1 600	2 200	1.250	51217
90	120	22	1	59 000	190 000	1 800	2 600	0.687	51118
90	135	35	1.1	117 000	325 000	1 500	2 000	1.700	51218
100	135	25	1	85 000	268 000	1 700	2 400	0.987	51120
100	150	38	1.1	147 000	410 000	1 300	1 800	2.290	51220
110	145	25	1	87 000	288 000	1 600	2 200	1.070	51122
110	160	38	1.1	153 000	450 000	1 200	1 700	2.460	51222
120	155	25	1	84 000	310 000	1 600	2 200	1.110	51124
120	170	39	1.1	154 000	470 000	1 100	1 500	2.710	51224
