Insert Bearing(UC210) UC210,China Auto Parts,buy Bearing UC210 ,Suppliers, Manufacturers, Exporters from gasgoo.com

Home » Product Directory » Universal Parts » Bearing »

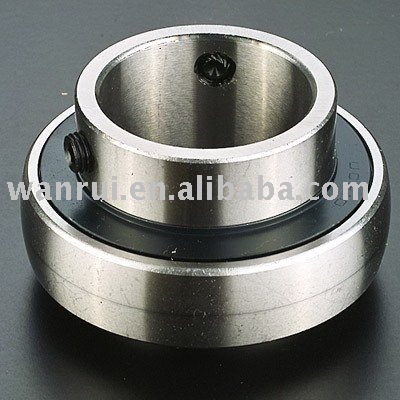

Image for Insert Bearing(UC210)

Insert Bearing(UC210)

Application: Universal
OEM No/Model: UC210
Market Type:After Market
FOB Price: Inquiry For It?
Payment Terms: L/C, T/T
Minimum Order: 100 Piece/Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Place of Origin:
Zhejiang, China (Mainland)
Delivery Port:
Ningbo,Shanghai
OE Experience:
No

Product Name:Insert Bearing(UC210)

Insert Bearing(UC210)

Application

Universal

Product Description:

OEM No/Model: UC210

Insert bearing unit is combination of an insert bearing,seal and a housing of high-grade cast iron or pressed steel.

1-Construction:Insertbearing unit are composed of insert bearing installed in a special housing.The spherical fit of the outside diameter of the insert bearing and the inside diameter of the housing accomodates misalignments.

2-Production Range:

Bearing No.	Dimensions	mm								ratings	ratings	Weight
	Dimensions	in.								N	N	(kg)
	d	D	B	C	S	S1	G	Ds	F	N	N	(kg)
UC201	12	47	31	17	12.7	18.3	4.8	M6×1	3.7	9880	6200	0.20
UC201-8	3/4	1.8504	1.2205	0.6693	0.5	0.72	0.189	1/4-28UNF	0.146	9880	6200	0.19
UC202	15	47	31	17	12.7	18.3	4.8	M6×1	3.7	9880	6200	0.19
UC202-9	9/16	1.8504	1.2205	0.6693	0.5	0.72	0.189	1/4-28UNF	0.146			0.19
UC202-10	5/8	1.8504	1.2205	0.6693	0.5	0.72	0.189	1/4-28UNF	0.146			0.19
UC203	17	47	31	17	12.7	18.3	4.8	M6×1	3.7	9880	6200	0.18
UC203-11	11/16	1.8504	1.2205	0.6693	0.5	0.72	0.189	1/4-28UNF	0.146	9880	6200	0.17
UC204	20	47	31	17	12.7	18.3	5	M6×1	3.7	9880	6200	0.16
UC204-12	3/4	1.8504	1.2205	0.6693	0.5	0.72	0.197	1/4-28UNF	0.146	9880	6200	0.16
UC205	25	52	34.1	17	14.3	19.8	5	M6×1	3.9	10780	6980	0.20
UC205-13	13/16	2.00472	1.3425	0.6693	0.563	0.78	0.197	1/4-28UNF	0.154			0.24
UC205-14	7/8											0.23
UC205-15	15/16											0.21
UC205-16	1											0.20
UC206	30	62	38.1	19	15.9	22.2	7	M6×1	5	14970	10040	0.32
UC206-17	1-1/16	2.4409	1.5	0.748	0.626	0.874	0.276	1/4-28UNF	0.197			0.33
UC206-18	1-1/18											0.34
UC206-19	1-3/16											0.32
UC206-20	1-1/4											0.31
UC207	35	72	42.9	20	17.5	25.4	8	M8×1	5.7	19750	13670	0.48
UC207-20	1-1/4	2.8346	1.689	0.7874	0.689	1	0.315	516-24UNF	0.224			0.54
UC207-21	1-5/16											0.51
UC207-22	1-3/8											0.48
UC207-23	1-7/16											0.45
UC208	40	80	49.2	21	19	30.2	8	M8×1	6.2	22710	15940	0.64
UC208-24	1-1/2	3.1496	1.937	0.8268	0.748	1.189	0.315	5/16-24UNF	0.224			0.68
UC208-25	1-9/16	3.1496	1.937	0.8268	0.748	1.189	0.315	5/16-24UNF	0.224			0.65
UC209	45	85	49.2	22	19	30.2	10	M8×1	6.4	24360	17710	0.68
UC209-26	1-5/8	3.3465	1.937	0.8661	0.748	1.189	0.394	5/16-24UNF	0.252			0.78
UC209-27	1-11/16											0.74
UC209-28	1-3/4											0.70
UC210	50	90	51.6	24	19	32.6	10	M10×1	6.5	26980	19840	0.80
UC210-29	1-13/16	3.5433	2.0315	0.9449	0.748	1.283	0.394	3/8-24UNF	0.256			0.92
UC210-30	1-7/8											0.87
UC210-31	1-15/16											0.80
UC210-32	2											0.78
