Quick Details

• Place of Origin:

  Zhejiang, China (Mainland)

• Packing:

  transparent paper, carton

• OE Experience:

  No

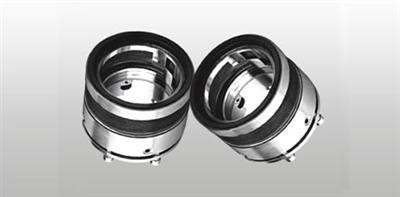

Product Name:604,606 ,607, 609 series metal bellow seal

604,606 ,607, 609 series metal bellow seal

Application

Auto

Product Description:

OEM No/Model: 606

metal bellow seal equivalent to Johncrane Type606 for high temperature

The Type 606 is a rotating seal with the same high-strength design features as the Type 609. In addition, the Type 606 incorporates drive lugs under the bellows that provide added rotational drive. This reduces torsional stress on the bellows, and makes the Type 606 the ideal seal for maximum reliability and extended life in viscous or thermosetting applications.

Pressure Vacuum to 25 bar / 360 psi

Vacuum to 69 bar / 1,000 psi with DOUBLE-PLY bellows
(see Basic Pressure Ratings curve on Product Specification sheet)

Speed Up to 25 m/s / 5,000 fpm for Types 606 and 609
Up to 50 m/s / 10,000 fpm for Type 604

Temperature -75 to +425 celsius degree/ -100F to +800F with Flexible Graphite static packing

Hangzhou Chinabase Machinery Co., Ltd. is a group of manufacturing facilities, specialize in power transmission products, CATV products, mechanical seal, hydraulic and Pheumatic.

we offer one-stop solution for the purchase of mechanical power transmission products in China. We can ...[Read More]

Company Profile:

• Main Product:

  agricultural gearbox,gearbox/Reducer,mechanical seal/shaft seal,valve operator,conveyor,stamping,forging,casting,cylinder,chrome bar,chain,sprocket,pulley,coupling,gear/rack,planetary gearbox,worm gearbox,reducer/gearbox,bevel gearbox,helical gearbox

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Eastern Europe
