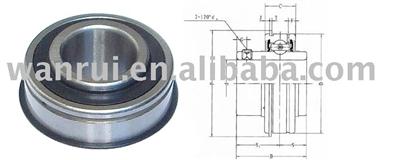

SER200 Series Insert Bearing (SER204)

Application: Auto
OEM No/Model: SER204
Market Type:After Market
FOB Price: Inquiry For It?
Payment Terms: L/C, T/T
Minimum Order: 100 Piece/Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Place of Origin:
Zhejiang, China (Mainland)
Delivery Port:
Ningbo,Shanghai
OE Experience:
No

Product Name:SER200 Series Insert Bearing (SER204)

SER200 Series Insert Bearing (SER204)

Application

Auto

Product Description:

OEM No/Model: SER204

Ball bearing unit is combination of a insert bearing,seal and a housing of high-grade cast iron or pressed steel.

1-Construction:Ball bearing unit are composed of a insert bearing installed in a special housing.The spherical fit of the outside diameter of the insert bearing and the inside diameter of the housing accomodates misalignments.

2-Production Range:

SER200series:

Bearing No.	Dimensions	mm											Dynamic load ratings	Static load ratings	Weight
		in.											N	N	(kg)
	d	D	B	C	S	S1	T	F	J	P	G	ds
SER204	20	47	31	15.9	10.3	20.7	1.12	3.8	2.46	52.7	4.8	M6×1	9880	6200	0.21
SER204-12	3/4	1.8504	1.2205	0.626	0.406	0.815	0.044	0.15	0.097	2.075	0.189	1/4-28UNF
SER205	25	52	34.9	19	13.1	21.8	1.12	5.2	2.46	57.9	5	M6×1	10780	6980	0.27
SER205-13	13/16	2.0472	1.374	0.748	0.516	0.858	0.044	0.205	0.097	2.28	0.197	1/4-28UNF
SER205-14	7/8
SER205-15	15/16
SER205-16	1
SER206	30	62	38.1	22.2	15.9	22.2	1.7	5.6	3.28	67.7	5	M6×1	14970	10040	0.39
SER206-17	1-1/16	2.4409	1.5	0.874	0.626	0.874	0.067	0.22	0.129	2.665	0.197	1/4-28UNF
SER206-18	1-1/8
SER206-19	1-3/16
SER206-20	1-1/4
SER207	35	72	42.9	23.8	17.5	25.4	1.7	5.6	3.28	78.6	6.7	M8×1	19750	13670	0.63
SER207-20	1-1/4	2.8346	1.689	0.937	0.689	1	0.067	0.22	0.129	3.094	0.264	5/16-24UNF
SER207-21	1-5/16
SER207-22	1-3/8
SER207-23	1-7/16
SER208	40	80	49.2	27.8	19	30.2	1.7	6.4	3.28	86.6	8	M8×1	22710	15940	0.81
SER208-24	1-1/2	3.1496	1.937	1.0945	0.748	1.189	0.067	0.252	0.129	3.409	0.315	5/16-24UNF
SER208-25	1-9/16
SER209	45	85	49.2	27.8	19	30.2	1.7	6.4	3.28	91.6	8	M8×1	24360	17710	0.9
SER209-26	1-5/8	3.3465	1.937	1.0945	0.748	1.189	0.067	0.252	0.129	3.606	0.315	5/16-24UNF
SER209-27	1-11/16
SER209-28	1-3/4
SER210	50	90	51.6	28.6	19	32.6	2.46	7.5	3.28	96.5	10	M10×1	26980	19840	0.98
SER210-29	1-13/16	3.5433	2.0315	1.126	0.748	1.283	0.097	0.295	0.129	3.799	0.394	3/8-24UNF
SER210-30	1-7/8
SER210-31	1-15/16
SER210-32	2
SER211	55	100	55.6	30.2	22.2	33.4	2.46	7.5	3.28	106.5	10	M10×1	33370	25110	1.4
SER211-32	2	3.937	2.189	1.189	0.874	1.315	0.097	0.295	0.129	4.193	0.394	3/8-24UNF
SER211-33	2-1/16
SER211-34	2-1/8
SER211-35	2-3/16
SER212	60	110	65.1	31.8	25.4	39.7	2.46	7.5	3.28	1116.6	10	M10×1	36740	27970	1.89
SER212-36	2-1/4	4.3307	2.563	1.252	1	1.563	0.097	0.295	0.129	4.591	0.394	3/8-24UNF
SER212-37	2-5/16
SER212-38	2-3/8
SER212-39	2-7/16
