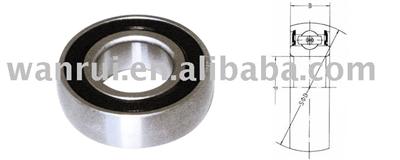

OEM No/Model: SC200
Insert Ball bearing is combination of a radial ball bearing,seal and a housing of high-grade cast iron or pressed steel.
1-Construction:Ball bearing unit are composed of a double sealed ball bearing installed in a special housing.The spherical fit of the outside diameter of the insert bearing and the inside diameter of the housing accomodates misalignments.
2-Production Range:
| Bearing No. | Dimensions | mm | Dynamic load ratings | Static load ratings | Weight | |
| in. | N | N | (kg) | |||
| d | D | B | ||||
| SC200 | 0.3937 | 0.3543 | 1.1811 | 520 | 245 | 0.03 |
| 10 | 30 | 9 | ||||
| SC201 | 0.4724 | 0.3937 | 1.2598 | 690 | 310 | 0.035 |
| 12 | 32 | 10 | ||||
| SC202 | 0.5906 | 0.4331 | 1.378 | 780 | 380 | 0.04 |
| 15 | 35 | 11 | ||||
| SC203 | 17 | 40 | 12 | 7360 | 4480 | 0.06 |
| 0.6693 | 1.5748 | 0.4724 | ||||
| SC204 | 20 | 47 | 14 | 9880 | 6200 | 0.1 |
| 0.7874 | 1.8504 | 0.5512 | ||||
| SC205 | 25 | 52 | 15 | 10780 | 6980 | 0.13 |
| 0.9843 | 2.0472 | 0.5906 | ||||
| SC206 | 30 | 62 | 16 | 14970 | 10040 | 0.2 |
| 1.1811 | 2.4409 | 0.6299 | ||||
| SC207 | 35 | 72 | 17 | 19750 | 13670 | 0.29 |
| 1.378 | 2.8346 | 0.6693 | ||||
| SC208 | 40 | 80 | 18 | 22710 | 15940 | 0.37 |
| 1.5748 | 3.1496 | 0.7087 | ||||
| SC209 | 45 | 85 | 19 | 24360 | 17710 | 0.46 |
| 1.7717 | 3.3465 | 0.748 | ||||
| SC210 | 50 | 90 | 20 | 26980 | 19840 | 0.57 |
