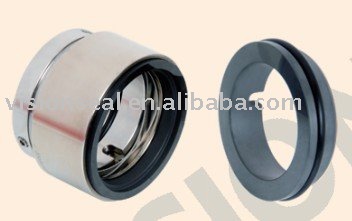

Mechanical seal J20 for sealing solid particles and high viscosithy process medium, such as pulp, amylum or waste water.
Applications:
Mechanical seal for sealing solid particles and high viscosithy process medium,such as pulp, amylum or waste water.
Structure Features:
1) Balanced spring mechanical seal
2) Independent of direction of rotation
3) Spring protective type
4) The spring has permanent elastic firm and reliable, and the axial route of wave spring is small
5) In accordance with EN12756, ISO3069
Meterial:
Seal face:
J202: Carbon×SiC
J203: SiC×SiC
Metal parts: 304, 316
Spring: 17-7PH
Seal ring: NBR, FKM, MVQ
Operating Paramenters:
Temperature: -40oC to +200oC
(-40oF to +392oF)
Pressure: to 25bar
Speed: to 20m/s
