Quick Details

• Place of Origin:

  Zhejiang, China (Mainland)

• Delivery Time:

  0

• Packing:

  Coii/Roll

• Delivery Port:

  Shanghai

• OE Experience:

  No

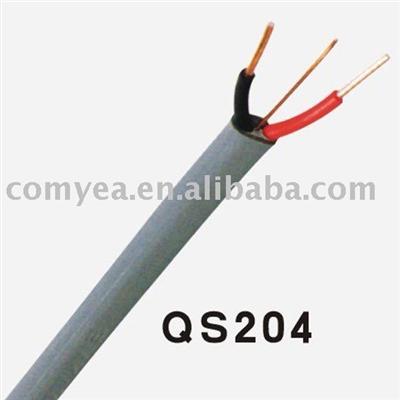

Product Name:Industry Power Cable QS204

Industry Power Cable QS204

Application

universal

Product Description:

20 years' professional manufacture experience of 450/750V INDUSTRIAL POWER CABLE

450/750V INDUSTRIAL POWER CABLE

Conductor Material:Copper

Conductor cross-section:2x1.5mm2+1x0.75mm2

Insulation: PVC

Rated Voltage: 450/750V

CCC Certification

IEC Certification

RoHS Compliant

20 years' professional manufacture experience

450/750V INDUSTRIAL POWER CABLE

This Electric wires belong to series of laying exectric wires,which is mainly suitable for laying at the fixed places,It is widely used as coonectors of drive,lighting,electric equipments,instrument and telecommunication equipments with reted voltage 450/750 V or below.

Specification:

1. The rated voltage of the wires should equal to or higher than

the rated voltage of the system when wires are used at AC system. If the wires

are used at DC system, the rated voltage of system should lower than 1.5 times

as high as rated voltage of cable and wires. The working voltage of the system

could be 1.1 times as high as the rated voltage of the cable.

2. The long term working temperature should lower than 70°C ,The working temperature of BV-90 should lower than 90°C. And the laying temperature should higher than 0°C.

3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.
