Quick Details

• Temperature of Media:

  Normal Temperature

• Place of Origin:

  Shanghai, China (Mainland)

• Delivery Time:

  0

• Packing:

  Export wooden box.

• OE Experience:

  No

Product Name:Control valve

Control valve

Application

auto

Product Description:

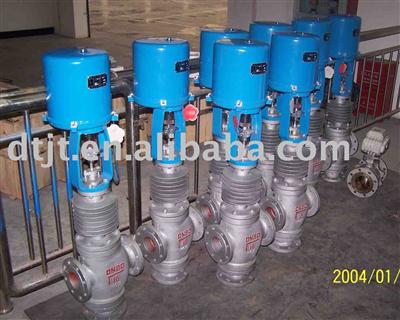

Control valve

ZDSJP (M) mini-type electric pneumatic single seat (sleeve) control valve is made
up of lower resistance through single seat valve or lower resistance sleeve valve
attached PS or 3810 series actuator (Germany). There is a servo magnifier in
the pneumatic actuator and input control single (4 - 20mA DC or 1 - 5V DC) and single-phase power to control the pressure, flow, temperature, and liquid level.
This valve is widely applied in power, gas, industry chemical, metallurgy, environment
protection, light industry, teaching and scientific research areas.

Specifications:
1) Style: through inverse S-cast valve
2) DN: DN20 - 200mm
3) PN: PN1.6, 4.0, 6.4MPa
4) Connection way: JB78-59, JB/T79.2-94 concave style
5) Material: HT200, ZG230-450, ZG1Gr18Ni9Ti, ZG0Cr18Ni12M02Ti
6) Normal temperature: -20 - +200°C
7) Heat elimination: -40 - +450°C
8) Gland style: bolt compression style
9) Pecking: V-pattern PTFE, soft graphite, stainless steel mellows
10) Core style: upper guide single seat ram core or upper guide single seat sleeve
ram core
11) Flow characteristics: equal percentage, linearity and quick opening
12) Actuator:
a) PS series, 3810, ZAZ (within DN100) or DKZ (above DN100) series electric
angle stroke actuator
b) 3810 series are explosive proof
