Quick Details

• Speed:

  5m/s

• Pressure:

  0-40Mpa

• Material:

  Rubber

• Place of Origin:

  Hebei, China (Mainland)

• Delivery Time:

  0

• Packing:

  each piece in a polybag, and ten pieces in a carton

• Delivery Port:

  Tianjin, Shanghai

• OE Experience:

  No

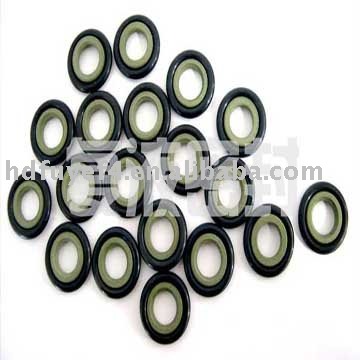

Product Name:Ptfe Step Seal

Ptfe Step Seal

Application

General

Product Description:

high quality
high temperature resistance
insulation
corrosion resistance

 step seal

Performance and uses

It is composed by a ladder ring and a rubber O-ring. The O-ring can provide enough sealing force and it can also compensate the wear of ladder ring. It is suitable to use in the hydraulic cylinder.

Working pressure  0-40Mpa (the ceiling pressure is 60Mpa)

Reciprocating speed ≤5m/s

Rotating or swing movement  ≤3m/s

Temperatur -40°c-+200°c (it depends on the material of O-ring)

Applicable medium  hydraulic oil, steam, water, etc.

 Merits:

On crawling effect

Good dynamic and static sealing effect

Wear resistance and long service life

The applicable temperature range is wide and high chemical resistance. (it also depends on the material of O-ring.)

 Material: the ladder ring is made from PTFE, and the O-ring is made from NBR and FKM.

 We can also use other materials according to the customers’ request.
