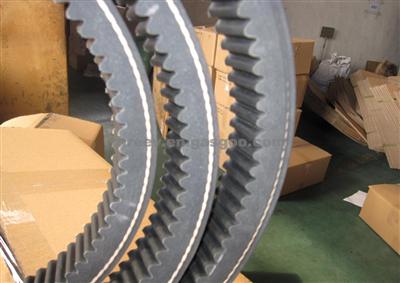

Name: Variable Speed V Belt
Dimensions of Industrial Variable Speed Belt
Type |
W16 |
W20 |
W25 |
W.15 |
W40 |
W50 |
W63 |
W80 |
W100 |
B |
17 |
21 |
26 |
33 |
42 |
52 |
65 |
83 |
104 |
Bp |
16 |
20 |
25 |
31.5 |
40 |
50 |
63 |
80 |
100 |
h |
6 |
7 |
8 |
10 |
13 |
16 |
20 |
26 |
32 |
Type |
1022V |
1422V |
1922V |
2322V |
2926V |
4430V |
4836V |
6236V |
b |
16 |
22 |
30 |
36.5 |
46 |
70 |
76 |
100 |
h |
6 |
8 |
11 |
12 |
14 |
17 |
22 |
26 |
a |
22° |
22° |
22° |
22° |
26° |
30° |
36° |
36° |
Features:
Both top and bottom of Industrial variable speed belt are curve planes. It is generally applicable to power transmission of variable speed belt and has the features of transferring stably and be maintained economically.
Welcome to enter our showroom for more detail information.
