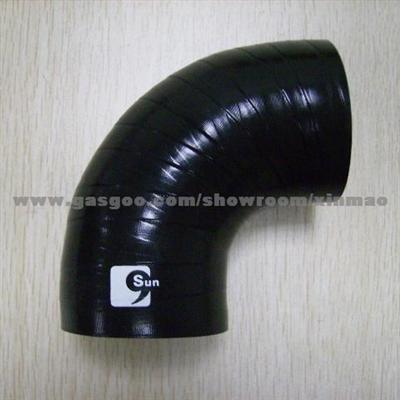

Fluorocarbon Lined 90 Degree Silicone Elbow
* Fluorocarbon liner for increased petrochemical combustion residue resistance * 4-Ply Aramid silicone reinforced configuration.
* Designed and engineered for connection between intercooler and hot side turbocharger
* Compensates for misalignment and offsets vibration * Recommended working temperature : -65°F to+500°F (-53.9°C to +260°C)
* Additional hump configurations available * UV and ozone resistant
See below table for specifications . other sizes available on request
| Part No | Inside Diameter | Wall Thick (In) |
Length (In) |
|
| In | mm | |||
| 219017-F | 2 | 51 | 0.19 | 4.0 |
| 219019-F | 2 1/4 | 57 | 0.19 | 4.0 |
| 219021-F | 2 1/2 | 64 | 0.19 | 5.0 |
| 219023-F | 2 3/4 | 70 | 0.19 | 5.0 |
| 219025-F | 3 | 76 | 0.19 | 5.0 |
| 219027-F | 3 1/4 | 83 | 0.19 | 5.0 |
| 219029-F | 3 1/2 | 89 | 0.19 | 5.0 |
| 219030-F | 3 3/4 | 95 | 0.19 | 5.0 |
| 219031-F | 4 | 102 | 0.19 | 5.0 |
| 21901917-F | 2 1/4 > 2 | 57 > 51 | 0.19 | 4.0 |
| 21902117-F | 2 1/2 > 2 | 64 > 51 | 0.19 | 5.0 |
| 21902321-F | 2 3/4 > 2 1/2 | 70 > 64 | 0.19 | 5.0 |
| 21902521-F | 3 > 2 1/2 | 76 > 64 | 0.19 | 5.0 |
| 21902925-F | 3 1/2 >3 | 89 > 76 | 0.19 | 5.0 |
| 21903125-F | 4 >3 | 102>76 | 0.19 | 5.0 |
