Product Name:LZ Type Flexible Pin Coupling

LZ Type Flexible Pin Coupling

Application

rolling mill, paper machine, textile machine, mining machine, crane, pipe welding machine and other heavy duty machinery

Product Description:

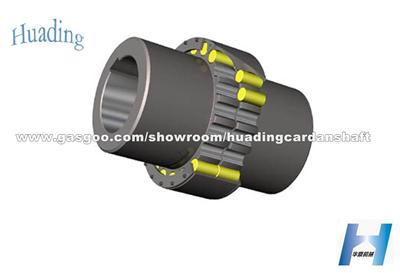

LZ Type Flexible Pin Coupling
Flexible Pin Coupling
· Model: LZ Type
· Norminal Torque: 0.112kN. M - 2800kN. M
· Allowed Rotation Sppeed: 5000rpm - 460rpm
· Connection: Shaft hole
· Shaft Hole Diameter(d1,d2,dz): 12mm - 850mm
· Shaft Hole Length (L): 27mm - 880mm
· Applications: Metallurgy, mining, lifting, transportation, petroleum, chemical, ships, textile, light industry, agricultural machinery, printing machines and pumps, fans, compressors, machine tools and other mechanical equipment and industry shaft transmission.
LZ type flexible pin drum gear coupling's outer edges of the two half-couplings and the inner edges of the outer sleeve are made into semi-circular grooves with the same radius, which are combined into the pin holes to embed the pins. The half-coupling of the driving shaft drives the outer sleeve through the pins, the outer sleeve drives the driven half-coupling to rotate by the pins to transmit the torque. Working temperature: -20 ~ +70
Huading Flexible Pin Coupling including LX & LXZ & LZ Type Flexible Pin Coupling, all the coupling with high quality. Our company has always adhered to the "quality first, user first, integrity management" business philosophy.
FLEXIBLE COUPLING Features:
 (1) Transmission torque is large. At the same torque, most of the rotary diameters are smaller than the gear couplings, small size and light weight, it can partially replace the gear couplings;
 (2) Compared with the gear coupling, the structure is simple, fewer components, manufacturing more convenient and doesnt need gear machining machine;
 (3) Easy maintenance, longer life, only remove the baffle to replace the nylon pin.
 (4) Nylon pins is self-lubricating material, without lubrication, not only save oil, but also clean the work environment;
 (5) Vibration damping function is poor, loud noise.

Flexible pin gear coupling has some compensation for the performance of the relative displacement of the two shafts, and is suitable for medium and high power drive, it does not apply to the vibration of certain requirements and noise need to strictly control the work site.
LZ type - Basic type;
LZD type - Conical shaft hole (with the motor connection);
LZJ type - Connect the intermediate shaft type;
LZZ type - With brake wheel type.
Huading design and production the Flexible Coupling, Flexible Pin Coupling, Flexible Bush Coupling, Star Type Coupling, Tire Coupling, Plum Coupling, Grid Coupling, Diaphragm Coupling etc. With strictly quality control and excellent performance.



Jingjiang Huading Machinery Manufacturing Co., Ltd. is a manufacture specializing in cardan shaft and various types of coupling, like universal coupling, drum gear coupling, flexible pin coupling, diaphragm coupling, star coupling etc, which can be widely used in rolling mill, paper machine, ...[Read More]
