Quick Details

• max.platformheight:

  3000mm

• liftratedCapacity:

  300kg

• Place of Origin:

  China

• Delivery Time:

  5-10 Days After Your Payment

• Packing:

  Carton Box, Plastic Bags, Wooden Cases Or As Your Requirement

• Delivery Port:

  Qingdao,Ningbo,Shanghai,Shenzhen

• Max. Production Capacity:

  1000sets

• OE Experience:

  No

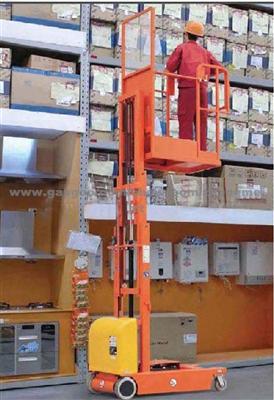

Product Name:High Quality Electric Order Picker

High Quality Electric Order Picker

Application

china coal

Product Description:

High Quality Electric Order Picker  high level order picker
Pickers
order picker
Electric High Level Order Picker
Electric Aerial Order Picker-FH  Product Description
Characteristic:
1. The aerial order picker adopts Winner hydraulic pump station.
2. Advanced dual Wheel drive system.
3. Italian ZAPI steering system for flexible operation.
4. Micro oil drain valve for accurate operation.
5. Maintenance-free battery with intelligent charger, long in service life and easy to operate.
6. The self-propelled order picker can automatically adjust running speed according to the lifting height, resulting in higher safety only.
7. It can be operated by one person.
8. The order picker can freely pass through the narrow aisle.
9. The product is controlled based on the imported intelligent technology.
10. It is powered by DC, can be controlled by manually. It can move automatically and the moving speed is adjustable.
11. It can climb a gradient very well.

12. The recharge will restrict the rising of the platform.
13. The driving motor has the automatic braking function.
14. The emergent drop will be locked.
15. The malfunction can be diagnosed automatically and the maintenance is very convenient.

Model No.		FH0330		FH0335	FH0340	FH0345
max.platform height	mm	3000		3500	4000	4500
max.machine height	mm	4450		5200	6000	6500
ground Clearance	mm	42		42	50	50
lift rated Capacity	kg	300
platform size	mm	600*640			900*640
max.driving speed(stowed)	km/h	4
max.driving speed(elevated)	km/h	1.6
min.turning	mm	1500
Max.Travel Grade	%	15-20
driving wheel size	mm	230-250*80
caster Size	in	6
free maintenance battery	V/AH	2*12/100
charger	V/A	24v/20A
driving motor	V/KW	2*24/0.4-0.5
lifting motor	V/KW	24V/2KW
Overall length	mm	1550
overall width	mm	700
Overall height	mm	1950	2200		1910	2070
overall net weight	kg	574	588		664	675
