Quick Details

• Place of Origin:

  Pingxiang

• Samples:

  Charge

• Sample Price:

  10

• Delivery Time:

  20m3 Within A Week

• Packing:

  Plastic Ton Bag With Wooden Pallet

• Delivery Port:

  Shanghai

• Max. Production Capacity:

  8000m3/Year

• Export Ratio:

  61% - 70%

• OE Experience:

  No

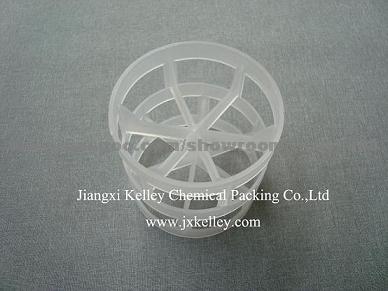

Product Name:Plastic Pall Ring (16, 25,90mm)PP,PE,RPP,PVC,RPVC,PVDF

Plastic Pall Ring (16, 25,90mm)PP,PE,RPP,PVC,RPVC,PVDF

Application

tower packing

Product Description:

Plastic Pall Ring

Plastic materials for the production of tower packings have recently been used in many application fields which formerly were restricted to metals and ceramic materials.The application fields of the individual plastic materials are determined by chemical resistance, temperature stability and mechanical strength.
Polypropylene is the most current thermoplastic in the production of tower packings. Due to its good resistance to chemicals at temperatures up to more than 100, polypropylene is superior to polyethylene in most fields. The basic property of Polypropylene PPDensity: 920kg/m³
Types used:Operational temperature range:
Polypropylene LTHA:up to +110
Polypropylene glass-fiber reinforced:up to + 140
Polypropylene alkaliproof:up to +110
Several special types on request
Cold-resistant : to -10 (depending on the type)Resistant to :acids like hydrochloric acid and sulfuric acid bases like caustic soda solution and caustic potash solution salt solutions like sodium chloride, ammonium chloride alcohols, ketones like methanol, ethanol, acetone org. acids like formic acid, acetic acidNot resistant to : strong oxidizing agents like oleum halogens like fluorine, chlorine, bromine halogenated hydrocarbons aromatic hydrocarbonsAs to the resistance, the respective concentrations and temperatures are to be observed.Geometric Parameters



D×H×	Specific area m2/m3	Void rate %	Bulk numberg/m3	Package density(kg/m3)	F factor m-1
16×16×1	188	0.91	170000	85	275
25×25×1.2	175	0.90	53500	69	239
38×38×1.4	115	0.89	15800	63	220
50×50×1.5	93	0.90	6500	52	127
76×76×2.6	73.2	0.92	1927	41	94
100×100×3	52.8	0.94	1000	32	82
