Quick Details

• OE Experience:

  No

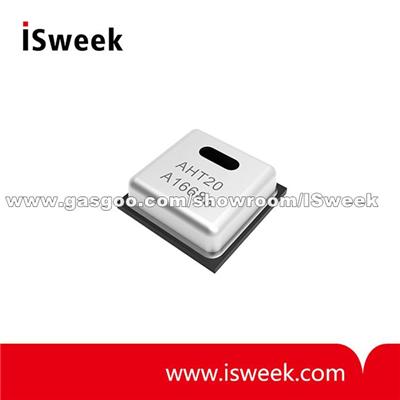

Product Name:AHT20 Integrated Temperature And Humidity Sensor

AHT20 Integrated Temperature And Humidity Sensor

Application

-

Product Description:

1.Technical parameter

Supply voltage	DC : 2.0 - 5.5V
Measuring range (humidity)	0 ~ 100% RH
Measuring range (temperature)	-40 ~ + 85
Humidity accuracy	± 2 % RH ( 25  )
Temperature accuracy	± 0.3
Resolution	temperature: 0.01 Humidity: 0.024%RH
Response time	temperature: 5s humidity: 8s 1/e (63%)
Output signal	I2C signal


2.Product Overview
AHT20, as a new generation of temperature and humidity sensors, has established a new standard in size and intelligence. It is embedded in a double row flat no-lead package suitable for reflow soldering, with a bottom of 3 x 3 mm and a height of 1.0 mm. The sensor outputs calibrated digital signals in standard IAHT20, as a new generation of temperature and humidity sensors, has established a new standard in size and intelligence. It is embedded in a double row flat no-lead package suitable for reflow soldering, with a bottom of 3 x 3 mm and a height of 1.0 mm. The sensor outputs calibrated digital signals in standard I2C format.AHT20 is equipped with a newly designed ASIC chip, an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element.
As a result, the performance of the new generation of temperature and humidity sensors has greatly improved or even exceeded that of the previous ones with more stability in harsh environments.
Each sensor is calibrated and tested, with product batch number printed on the surface of the product.
Due to the improvement and miniaturization of the sensor, its cost-effective ratio is higher, and finally all equipment will benefit from the cuttingedge energy-saving operation mode.

3.Application Scope
HVAC system,dehumidifier,test and inspection equipment,consumer goods,automobiles,automatic control,data recorder,weather station,household appliances,humidity regulation,medical and other related temperature and humidity detection and control.

4.Product Feature

•    Full calibration
•    Digital output, I2C interface
•    Excellent long-term stability
•    SMD package suitable for reflow soldering
•    Quick response and strong anti-jamming capability
