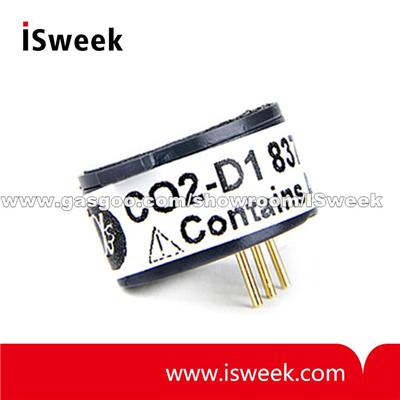

CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) Schematic Diagram
CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) PERFORMANCE | ||
Sensitivity | mV/decade concentration change (0.5% to 5% CO2) | 6 to 10 |
Response time | t90 (s) for mV change (20°C)(0.5% to 5% CO2) | 2-4 mins |
Zero | E0 @ 5000ppm CO2 | -30 to +30mV |
Resolution | RMS noise (ppm equivalent) @ 5,000ppm CO2 | 100 |
Range | CO2 concentration | 0.5% to 90% |
Linearity | see Figure 3 | Logarithmic |
CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) LIFETIME | ||
Zero drift | (mV)E0 change/day in lab air | ±3 |
Sensitivity drift | mV/decade/month change in lab air, monthly test | < 1 |
Operating life | months until 80% original signal (12 month warranted) | < 12 |
CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) ENVIRONMENTAL | ||
Temperature range | °C | 10 to 35 |
Pressure range | kPa | 80 to 120 |
Humidity range | % rh continuous | 15 to 95 |
CO2-D1 Carbon Dioxide Sensor (CO2 Sensor) KEY SPECIFICATIONS | ||
Storage period | months @ 0 to 20°C (stored in original container) | 6 |
Input | Impedance of op amp input | > 108 |
