Quick Details

• OE Experience:

  No

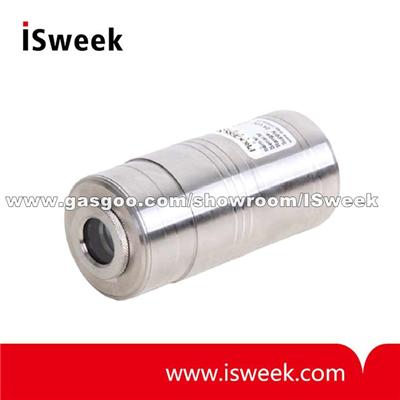

Product Name:Self-Contained One-Color Non-Contact Infrared Pyrometers

Self-Contained One-Color Non-Contact Infrared Pyrometers

Application

\

Product Description:

PSC-T54L
Self-Contained 1-Color Pyrometer for General Purpose Applications
Digital pyrometer with 4-20mA output and RS-485 Modbus RTU Protocol

PSC-T54L Non-Contact Infrared Pyrometers Description
The digital model PSC-T54L series pyrometers are specifically designed for general purpose applications. They are suitable for temperature measurement between -40 to 1000°C on non-metallic or coated metallic surfaces.

The compact, rugged stainless steel housing with companion cooling jacket facilitates operation under even the most difficult ambient conditions. The PSC-T54L can measure small spot sizes starting from 0.028" (0.7 mm).

With a quick response time of 10 ms (adjustable) the PSC-T54L can pick up the tiniest changes in temperature faster than other devices, i.e., thermocouples.

The IR sensor provides dual lasers to determine focus distance and is used to aim and pinpoint the target under measurement. The laser can be activated remotely via RS-485 communication interface.

The standard 0/4 to 20 mA linear temperature output signal allows for easy implementation into existing measurement and control systems.

The PSC-T54L possesses a galvanically isolated RS-485 interface. As such, the devices are bus-compatible and use the Modbus RTUprotocol.

The pyrometer can be connected to a computer via an optional RS-485 to USB interface adapter. By connecting the IR sensor with a PC using PSCSpot software, parameters such as emissivity, sub-temperature range, data storage settings, and response time can be adjusted.

The IR sensor parameters can also be adjusted via RS-485 interface or through the optional available handheld programming device DHP 1040.

PSC-T54L Non-Contact Infrared Pyrometers Typical Industry Applications:

• Paper & Packaging
• Powders & Bulk solids
• Ceramics
• Wallboard
• Food
• Thermoforming Glass & Composites

• Temperature ranges between -40°C and 1000°C
• Small spot sizes with high resolution optics-FOV 100:1
• 0/4 to 20 mA linear output, switchable
• Dual lasers for aiming
• Fast response time (10 ms)
• Integrated RS-485 interface and Modbus RTU
