Image for NDIR Carbon Dioxide (CO2) Sensor Module

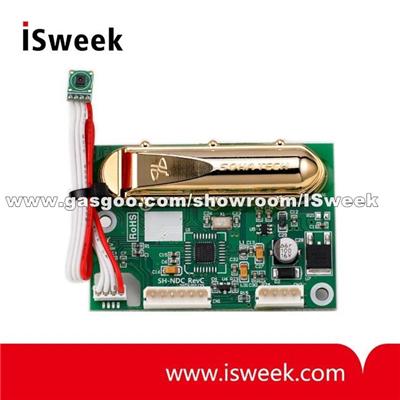

NDIR Carbon Dioxide (CO2) Sensor Module

Application: -
Market Type:After Market
Price: Inquiry For It?

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

OE Experience:
No

Product Name:NDIR Carbon Dioxide (CO2) Sensor Module

NDIR Carbon Dioxide (CO2) Sensor Module

Application

-

Product Description:

SH-300-NDTH NDIR Carbon Dioxide Sensor Module Features
Best Extremely Precise Sensor
Quick Response Time
Long Time Use, Stable performance at High & Low Temperature
Waterproof Filter for anti static filters fine dust and humidity in the air
One-way air indraft for represent average value when momentary CO2 Value change in the air
Low Current consumption
Output support: UART, 0~3V Analog

SH-300-NDTH NDIR Carbon Dioxide Sensor Module Application
CO2 Control for IAQ
Building, Hospital, School
Air cleaner, Air conditioner
Mushroom control, Boiler control

SH-300-NDTH NDIR Carbon Dioxide Sensor Module Technical Specification
CO2 Sensor

Measuring Type	Non-Dispersive Infrared (NDIR)
Measuring Range	0 ~ 3,000 / 5,000 / 10,000 ppm
Accuracy	FS ±2%, measured value±3% @ 0 ~ 50°C
Response Time	Every 2.0 Seconds
Warm-Up Time @25°C	< 90sec
Operating Condition	0 ~ 50°C, 0 ~ 95%RH (Non Condensing)
Output	Analog : 0~3VDC (0~3000, 5000, 10000ppm) [CN2]
Output	UART: 9600bps [CN1] / TTL Level 3.3V
Power Input	DC7V ~ 12V Input
Power Input	Fixed(Other Made): 5 VDC Regulated (±4%)
Consumption Current	Normal 38mA, Peak point 80mA
Interface	4PIN Header[CN2], 6PIN Header[CN1]
	Molex 5267 included.
	With 2.54mm spacing
Size	(W)65 mm x (H)45 mm x (D)17.6 mm (±0.5 mm)
Weight	22 g
