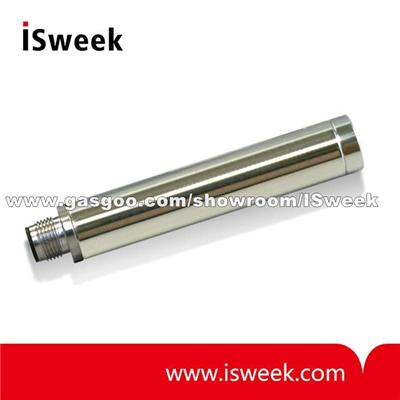

CAEL-S16 Humidity and Temperature Transmitter Features
Humidity |
|
Measurement range | 0 - 100 %RH |
Accuracy (including non-linearity, hysteresis, and repeatability) | |
CAEL-S16A |
1.5%RH@25 (20 - 80%RH) ±2%RH@25 (0 - 20/80 - 100%RH) |
CAEL-S16 |
2%RH@25 (20 - 80%RH) ±3%RH@25 (0 - 20/80 - 100%RH) |
CAEL-S16B | 3%RH@25 (20 - 80%RH) |
Temperature coefficient (from 0°C to 80°C) | typ. ±0.02%RH/ |
Humidity Hysteresis | ±1%RH |
Recovery time after 150 hours of condensation | 10 second |
Long term drift | < 0.25%RH/year |
Response Time (at 63% of signal) from 33 to 75%RH | 5 second (at 1m/s air flow) |
Temperature | |
Measurement range | -40 ~ 105 |
Accuracy (including non-linearity, hysteresis, and repeatability) |
±0.7 (-40 ~ 5) ±0.3 (5 ~ 60) ±0.9 (60 ~ 105) |
Long term drift | < 0.02/year |
Analog output (two channels) | |
Voltage version | 0 - 1 V / 5 V / 10 V |
Accuracy of analog outputs at +25 °C | ±0.1% full scale |
Temperature dependence | ±0.005%/°C full scale |
External loads |
current output RL < 500 ohm voltage output 0 - 1 V output RL > 2k ohm 0 - 5 V and 0 - 10 V outputs RL > 10k ohm |
RS485 output with Modbus RTU | |
ID | 1 - 247 |
Baud rate | 9600/ 19200/38400/57600/115200 |
Data format | N81/N82/E81/E82/O81/O82 |
Psychrometric calculations (option) | |
(Td) dew point temperature, (Tf) frost/dew point temperature, (R) mixing ratio, (A) absolute humidity, (S) enthalpy, (Tw) wet bulb temperature, (E) water vapor pressure |
|
Power supply | |
Analog output 0-1V | 5 - 28VDC |
Analog output 0-5V / 10V | 15 - 28VDC |
RS485 output | 12 - 28VDC |
Power consume (25 °C, V+ 24 VDC) | |
Analog output | typ. 3mA |
RS485 output | typ. 3mA |
Mechanics | |
Probe material | brass nickel-plated |
Probe pressure | 10bar |
Housing classification | IP65 |
Cable | M12 4-pin 2M female |
Operation Temperature range | |
-40 ~ 105°C (-40 ~ 221°F) | |
Electromagnetic compatibility | |
EN61326-1:2013 Emission | |
CISPR11:2009+A1:2010 Group 1 Class B | |
EN61326-1:2013 Immunity | |
IEC 61000-4-2:2008 | |
IEC 61000-4-3:2006+A1:2007+A2:2010 | |
IEC 61000-4-8:2009 |
Model |
Output | Temperature Scale |
Psychrometric calculations (Option) |
CAEL-S16A CAEL-S16 CAEL-S16B |
0 - 10V (3) 0 - 5V (5) 0 - 1V (6) RS485 (4) |
0 - 50°C (1) 0 - 100°C (2) By order (S) none (X) |
Yes (M) No |
