Railway Truck Pressure Transmitter 250Bar Low Cost Water Supply System Pressure Sensor

    • Application: all
    • Market Type:After Market
    • Price: US $60 - 190 / Piece
    • Payment Terms: L/C, T/T, Western Union,MoneyGram,Paypal
    • Minimum Order: 1 Piece

Quick Details

  • Supply Ability:

    5000 Piece/Pieces per Month hydraulic pressure sensor with membrane

  • Delivery Details:

    10-15 days after payment

  • Packing:

    standard export packing, no damage to product

  • Delivery Port:

    Shenzhen

  • OE Experience:

    No

Product Name:Railway Truck Pressure Transmitter 250Bar Low Cost Water Supply System Pressure Sensor

Railway Truck Pressure Transmitter 250Bar Low Cost Water Supply System Pressure Sensor

Application

all

Product Description:

        Railway Truck Pressure Transmitter 250Bar Low Cost Water Supply System Pressure Sensor




     Profiles

HPT906 pressure transducer/transmitters use high quality sputtered film pressure sensor as signal sensing element, through automatic testing, laser trimming compensating zero and sensitivity in wider temperature range the amplifier circuit is in stainless steel housing, transforming sensor signal into standard output signal. Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable, having excellent flexibility, sensitivity and diversity. The product is widely used for pressure measure and control of hydraulic system, petroleum, chemi-industry, gas and air products field, metallurgy, power station and hydrology, etc.

   ♦  Details Show of hydraulic pressure sensor with membrane

.jpg



    Specifications of hydraulic pressure sensor with membrane

Product Name:

hydraulic pressure sensor with membrane

Pressure Range:

0-6Bar.....1000 Bar  Optional (sputtered film)

Pressure Type:

Gauge pressure; Sealed gauge pressure optional.

Accuracy:

(Linearity Hysteresis

Repeatability)

≤ ±1.0%F.S

≤ ±0.5%F.S

≤ ±0.25%F.S (customized)

Including non-lin., rep. and hys. Optional

Medium Temp:

-40?…125?(Typical); -55…150?(by customized)

Ambient Temp:

-30?hellip; 85?Typical); -55…145?(by customized)

Temperature Compensation:

-40…80?/span>

Electronic Wire:

2 Wires

3 Wires

Output:

4~20Ma

0~5 V

0~10 V

0.5~4.5 V

Power Supply:

10~30 V DC

12~30 V DC

15~30 V DC

5 V dc

Electronic connection:

Smaller Hirschman Terminal Box IP65

4 Pins M12 Connectors IP45

Packard connector, 3 Pins IP67

Outlet cable 2 meters IP68 Optional

Cable length:

Cable or no by customized.

Cable length standard with 1 meter.

Cable diameter about 6 mm

Pressure

connect port:

1/4’‘NPT male 1/4’‘NPT Female, M20*1.5, G1/2’’ male,

G1/4’’male, G1/4’’ Female, G3/8’’ male optional. (by customized)

Certificate:

Explore Proof Ex(ia)II CT6 and CE approving



Characters:

♥ Accuracy: ≤±0.5%F.S.

♥ Wide working temperature scope

♥Max 10 years lifetime.

♥Excellent resistance against impact, overload,

Shock and erosion.

♥Highly-efficient lighting absorption

and strong RFI & EMI resistance

♥ Impact resistance and disturbance

♥ 1.5 times range standard overload.

♥5 times range burst pressure

♥CE approving

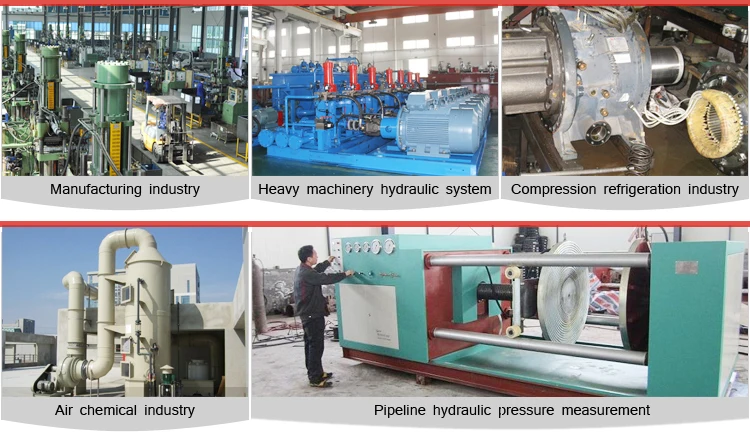

Applications:

♥Gas pressure measurement

♥ Oxygen Services

♥ Petrochemical industry

♥ Hydraulic and pneumatic systems

♥ Mine metallurgy

♥ HAVC, LNG, CNG Systems

♥ Refrigeration, Compressor systems

♥ Industrial machinery manufacture

♥ Construction, engineering machinery

♥ Combustion engine, oil engine and generator units.

♥ And so on



.jpg

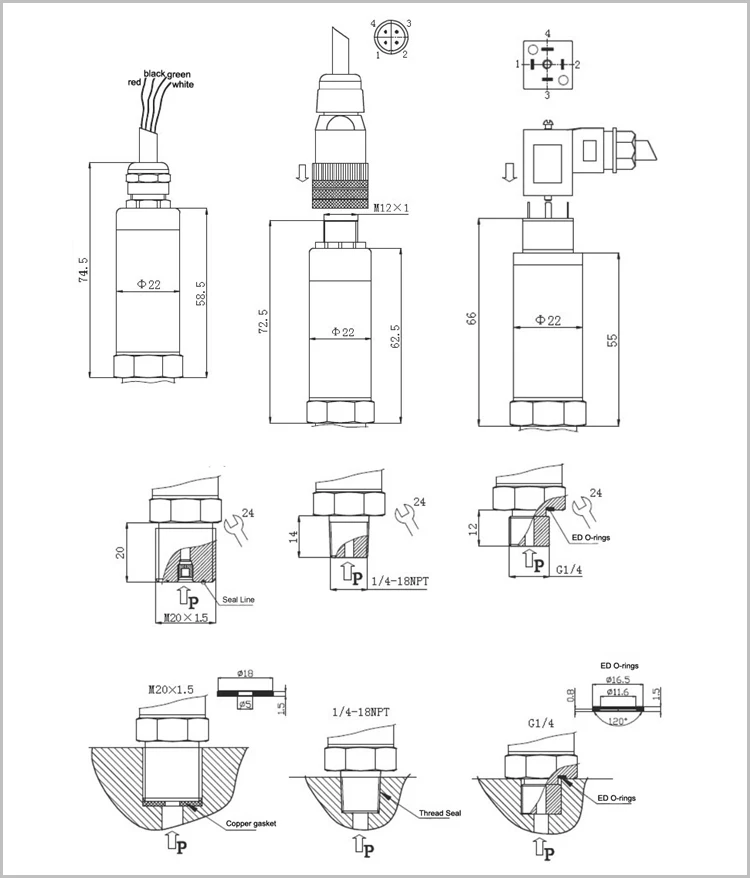

   Dimension and Drawing
-1.jpg  production process
   Quality monitoring


Packaging & Shipping
 Packaging&Shipping


 - .jpg



 Inquiry information

In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !

Pressure Measurement.jpg   Company Information
  ♦ Why Choose US?
 HOLYKELL always devotes ourselves in specialty manufacturing pressure sensors,pressure transducer,pressure transmitters,level sensors,level transmitters, ultrasonic sensors and now we can apply nearly all kinds of sensor techniques in the field of electric pressure measurement. Owing to the devotion to electric pressure measurement techniques, our enterprise holds inimitable core competition in the industry.

HOLYKELL pressure and level Instruments has been certified with ISO 9001 (2008) Enterprise Quality Management System by the United Kingdom Accreditation Service and our products are approved by many international authority institutions for the certificates of CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof. Our employees with the professional and high quality will make sure to provide you with high-quality products and superior services at any time and at any place. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.



More Products

 _17







FAQ Dear sir/madam:

HOLYKELL sensor is manufacturer of all kinds of Pressure Sensor (Transmitter/Transducer): Application: Refrigeration, Cooling System, Industry, Water, Pump, Cars, Generator etc.

Level Sensor (Transmitter/Transducer)  Application: Water, Fuel, Sea Water, Sewage Water, Depth Well, Flood, Tanks, Diesel, Gasoline etc



Ultrasonic Level Sensor (Transmitter/Transducer)  Application: Water, Fuel, Sea Water, Sewage Water, Depth Well, Flood, Tanks, Diesel, Gasoline etc



Melt Pressure Sensor (Transmitter/Transducer) Application: Plastic, Rubber etc.



High-Temperature Sensor (Transmitter/Transducer)



Flow Meter (Electromagnetic/ Ultrasonic)



Industrial Control Indicator



If you don't find the products you want on this page, please contact me or leave your message on below form, Even will offer you best suggestion and price! (It is better if can leave your email address on message)



Order remark:

If you want to know the price about products as soon as possible, pls tell below information:

---What's the application?

     Purity water, salt water, diesel fuel or other?

---What's the output?

    4~20mA, 0~5V DC or other?

---What's the pressure/level range?

    0~2bar, 0~30m or other?

---What's the temperature?

    -3060?or other?

---How many quantity do you need?

   1 piece or 10 pieces?

---Other sepcial requirements?



FAQ:



Q:How long will you give me the reply?

A: we will contact you in 12 hours as soon as we can.whatsapp/tel:+0086 15273139279

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.

Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.

Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
