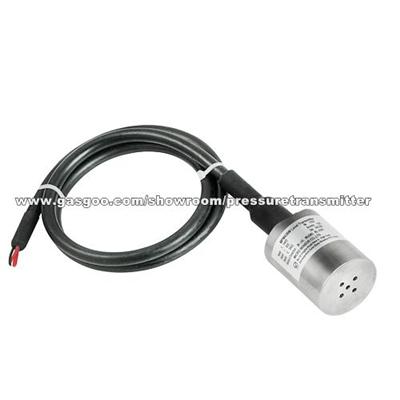

Submersible Level Transducer

    • Typical Clients: Asia,Africa
    • Market Type:OE Market
    • EXW Price: Inquiry For It?
    • Other Price Term: FOB
    • Payment Terms: T/T

Quick Details

Product Name:Submersible Level Transducer

Submersible Level Transducer

Product Description:

Submersible Level Transducer
Features
·Full stainless steel sealed construction;
·Submersible measurement;
·Constant current supply;
·Laser trimming compensating zero and span thermal error;
·Using high reliable and stable solid piezoresistive pressure cell;
·Water-proof and oil-proof cable;
Introduction
 level transducer is made by build-in a high accurate and reliable OEM gauge sensor into stainless steel housing. The top steel cap could protect sensor diaphragm and let liquid media go through unobstructed. The cable which has vented tube in connects with housing sealed, making sensor connecting to the atmosphere to make sure measurement precise. The transducer could be widely used for city water supply and drainage, water or oil tank, hydrology, reservoir, riverway and ocean, etc.
Specifications
@1.5mADC25
Pressure range 01200mH2O
Overpressure 1.5 times FS
Power supply 1.5mADC
Zero output ±2mVDC
FS output 70mVDC or 25mVDCrange2mH2O
Accuracy ±0.1%FSmin. ±0.25%FStyp. ±0.5%FSmax.
Long-term stability ±0.3%FS/year
Compensation temp. 050
Operation temp. -1080
Storage temp. -40100
Zero temp. coefficient ±0.02%FS/
FS temp. coefficient ±0.02%FS/
Housing Stainless steel 1Cr18Ni9Ti
Diaphragm Stainless steel 316L
O-ring Viton
Cable 7.2mm PVC
Response time10%90% 1ms
Insulation resistor 100M100VDC
Protection IP68
