OEM No/Model: SPD100GBsil

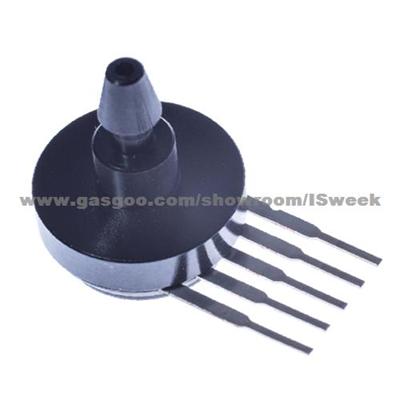

SPD100GBsil Pressure Sensor
100 PSI GAUGE TYPE PRESSURE SENSOR WITH BRIDGE OUTPUT
This Smartec pressure sensor has a non-compensated bridge output. The sensor has a range of 100 PSI (FS) and the bridge output is ratiometric to the power supply voltage. Other pressure ranges (from 0.3 to 100 psi) on request.
SPD100GBsil Gauge Pressure Sensor Electrical Characteristics
|
Min |
Typ |
Max |
Units |
Excitation voltage |
0 |
5 |
10 |
V |
Excitation current |
|
1,5 |
3 |
mA |
Pressure range |
0 |
|
100 |
PSI |
Span |
70 |
100 |
130 |
mV |
Offset |
-30 |
0 |
30 |
mV |
Linearity |
-0,3 |
±0,1 |
0,3 |
%FS |
Bridge Impedance |
4.0 |
5.0 |
6.0 |
K |
TC Span (0-50°C) |
-27 |
-22 |
-17 |
%FS/100°C |
TC Offset (0-50°C) |
-7 |
|
7 |
%FS/100°C |
Pressure overload |
|
|
1,5 X |
|
Operating temperature |
-40 |
|
85 |
°C |
Storage temperature |
-40 |
|
125 |
°C |
