Quick Details

• Type:

  rudder angle gauge

• Place of Origin:

  Shanghai China (Mainland)

• Working Voltage:

  12V/24V

• Fixing dimension:

  +/--80A

• Installation Dimension:

  52mm

• Material:

  stainless steel

• Place of Origin:

  Shanghai China (Mainland)

• Packing:

  NEUTRAL BOX

• Delivery Port:

  SHANGHAI

• OE Experience:

  No

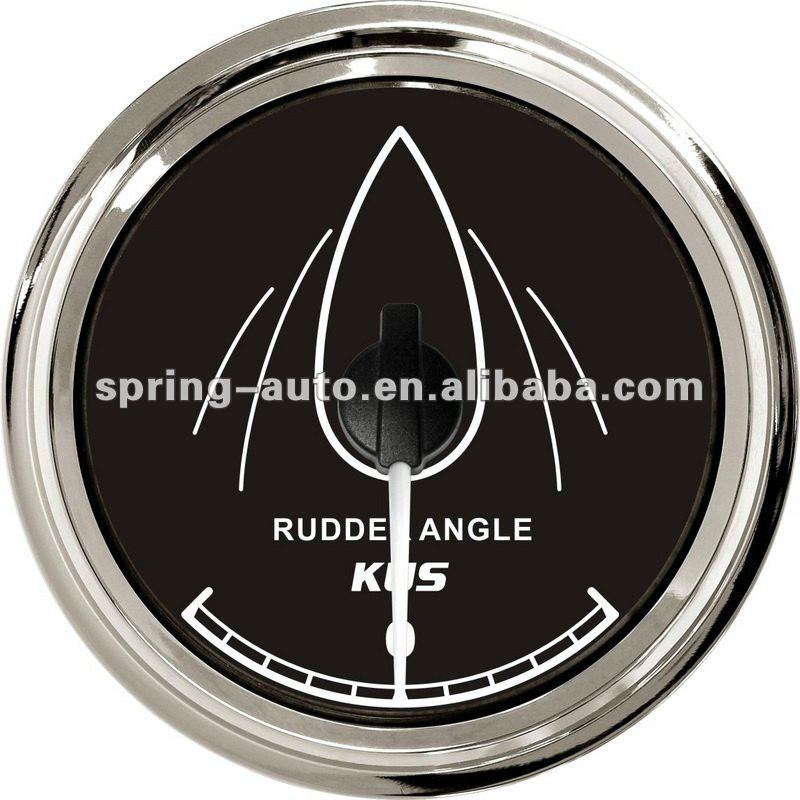

Product Name:85mm black/white faceplate rudder angle gauge 87-900ohm with rudder angle sensor

85mm black/white faceplate rudder angle gauge 87-900ohm with rudder angle sensor

Application

all

Product Description:

• Be suitable for all kinds of rudder sensors, and display the direction of underway marine
• Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
• Operating temperature: -40°C ~+85°C
• Protection rank : IP67.

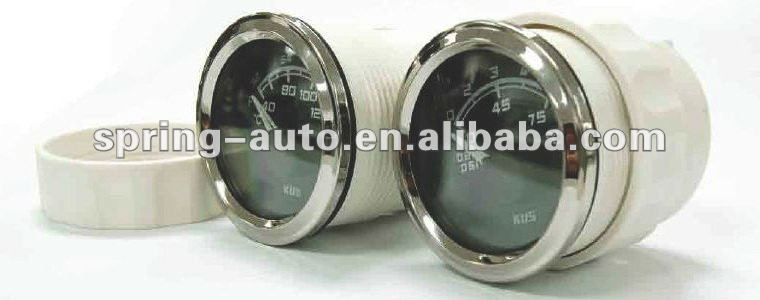

Products Picture

Product Information

• Operating voltage: 12V/24V
• Fixing dimension: 85mm.
• Scale Part: 0-4/4
• Description: Magnet Movement gauge
• Weight: 100g/each one pcs
• Bezels with black, white plastic and stainless steel can be customized, and faceplate with white, black can be choosed.
• Accessories: Installation Instructions;  Wires and resistance.

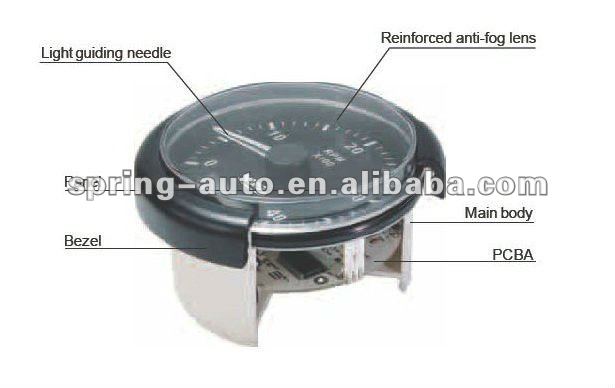

Product Features

1. Front side has IP67 protection rating; back side has IP65 protection rating;
2. Double layer reinforced anti-fogging class;
3. 316 Stainless steel bezel with curved glass;
4. Quick and easy to install by terminal
5. Choice between red and yellow backlight
6. Direct connect without extra resistors for 12/24V working voltage.
