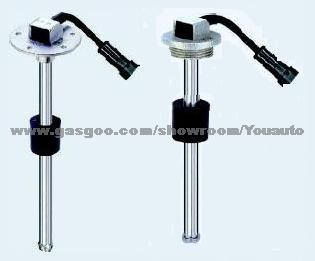

Below is the specification of Fuel level sensor
1)Materials: The main body is made of SUS316 or SUS304 stainless steel
2)Length range: 100~ 2000 mm.
3)Assembly: SAE standard 5 holes,
4)Output signal: Resistance control signal, 0-190Ω, 240-33Ω, or customized as
Required; You can also choose cur rent control signal, 0-20mA, 4-20mA or
Voltage control signal, 0.5-4.5VDC, 0-5VDC
5)Precision range: 10-40mm
6)Operating temperature: -40c ---+85c
7)Accessories:
- 5 pieces of M5 screws
- 2 mm thick NBR gasket
Or recommended 2 mm thick FPM gasket if be used in gas tank.We also can supply Machanical Gauge, adblue sensor, GPS Sensor and so on.
