Quick Details

• Type:

  Level

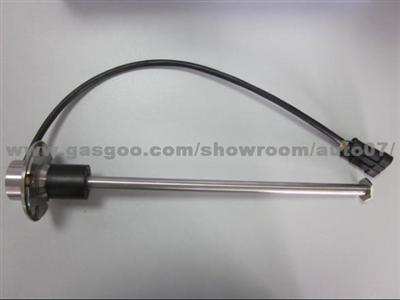

Product Name:Weichai Level Sensor QC/T 29106

Weichai Level Sensor QC/T 29106

Product Description:

Connector number in accordance with part number of AMP crimped with wire cable, according to QC/T 29106;
Liquid level measuring range: 50-220mm, measuring accuracy (during level descending): ±5mm
Temperature measuring range: -50125
Temperature testing prior to delivery: -40-2020
Terminals tin plated
Max.  working current 2mA,normal working temperature: 45-+105. R-T curve view right fig.
Measuring substance: Aqueous urea solutions metal parts material dip into the solution are 1Cr18Ni9Ti stainless steel
Other specification refer to QC/T 413

Wuxi Shengbang Electronics Co., Ltd. (hereinafter called “UTE”) was incorporated in Wuxi, Jiangsu of the RPC, is wholly owned by United Trinity (Holding) Ltd. Since founding in July 2004, UTE has its focus on the domain of automotive electronic control and has now become a leading domestic company ...[Read More]

Company Profile:

• Main Product:

  Auto sensor, auto parts

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America
