Quick Details

• Voltage:

  5v

• Place of Origin:

  China (Mainland)

• OE Experience:

  No

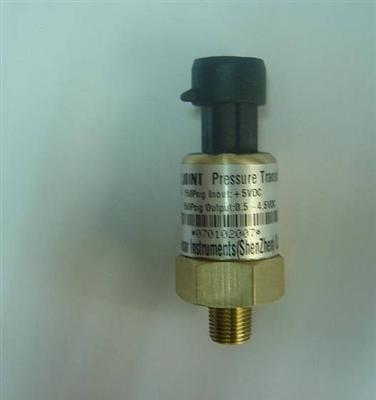

Product Name:Automotive Air Pressure Sensor

Automotive Air Pressure Sensor

Application

auto

Product Description:

DESCRIPTIONS
Model 641 incorporates MEMS technology and custom Application Specific Integrated Circuit (ASIC) technology in the design. It is specifically designed for tough automotive application.Model 641 is designed to perform in the underhood harsh environment such as temperature extremes, vibration, thermal and mechanical shock, and corrosive chemical. Please contact us for special design to meet your requirements.

SENSOR SPECIFICATIONS
Electrical:
Supply Voltage 5±0.5VDC
Supply Current 10 mA max
Maximum Output Current Source 1 mA dc
Output Impedance 10 ohms max
Output Typeratiometric
Output Voltage 0.5 to 4.5 VDC at 5V dc excitation

Operating Characteristics:
Range 0 to 213 psig
0 to 1.47 MPa
0 to 14.7 bar
Proof Pressure 2.94 MPa
Total Accuracy (%FS)1.5 type

Environmental Effects:
Compensated Temperature Range -40℃ to +85℃
Storage Temperature Range-50℃ to +150℃

Mechanical:
Protection Class IP 55
Pressure Port NPT 1/8

Media Compatibility Media Compatible with Silicon(641A)
Media Compatible with Stainless Steel(641B)
