Quick Details

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  Standard packing by carton

• Delivery Port:

  Shekou

• OE Experience:

  No

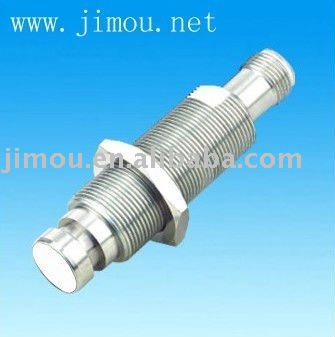

Product Name:HIGH Pressure Rated Inductive Proximity Sensors( M18 Euro Style)

HIGH Pressure Rated Inductive Proximity Sensors( M18 Euro Style)

Application

Universal

Product Description:

1.High precision and high performance
2.Wide range of detecting object
3.Contactless, high reliability, no abrasion

DC HIGH PRESSURE RATED INDUCTIVE PROXIMITY SENSOR

Diameter

M12

Shielded    Non-shielded

Shielded

Switching Distance Sn:(mm)

1.5mm / 2mm

Housing Material

Stainless steel

With LED    Without LED

Without LED

Operating Voltage

10-30VDC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

150mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

600Hz

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<1.0%(Sr)

Protection Category

IP68

Operating Temperature

-25°C - +70°C

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

180mA

EMC

RFI>3V/M / EFT>1KV / ESD>4KV(contact)

Shock/Vibration

IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part7.4.2

Material Active Face

ZrO2

Max. Pressure

500 bar

DC 3wire 10-30V NPN N.O.

       PA1T – S18 * N - OEA4

31

DC 3wire 10-30V NPN N.O.

       PA1T – S18 * N - CEA4

32

DC 3wire 10-30V PNP N.O.

       PA1T – S18 * P - OEA4

33

DC 3wire 10-30V PNP N.C.

       PA1T – S18 * P - CEA4

34

DC 4wire 10-30V Changeover NPN(N.O.&N.C.)

DC 4wire 10-30V Changeover PNP(N.O.&N.C.)

DC 2wire 10-60V N.O.

DC 2wire 10-60V N.C.

DC 3wire 10-55V NPN N.O.

DC 3wire 10-55V NPN N.C.

DC 3wire 10-55V PNP N.O.

DC 3wire 10-55V PNP N.C.

DC 3wire 5-36V NPN N.O.

DC 3wire 5-36V NPN N.C.

DC 3wire 5-36V PNP N.O.

DC 3wire 5-36V PNP N.C.

Wiring diagram No.

Cable2M (PVC)

Weight (g)

Approx.90g
