Quick Details

• Place of Origin:

  Shanghai, China (Mainland)

• Delivery Time:

  0

• Packing:

  Carton / Wooden Case

• Delivery Port:

  Shanghai

• OE Experience:

  No

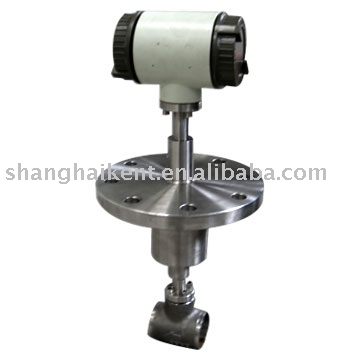

Product Name:(KTLU) Vortex Flow Transducer

(KTLU) Vortex Flow Transducer

Application

auto

Product Description:

Technical Features of KTLU Vortex flow transducer:

No moving parts, high reliability and durability Convenient installation and maintenance Sensor not connect with the measured fluids directly, stable performance and long service life Output pulse signal is directly proportional to flow rate, high accuracy and no zero drift Wide measuring range, turndown ratio 10:1 Low pressure loss, low cost Frequency output not affected by the fluid change in physical character and composition, meter factor (K) only considers shape and dimension of eddies. Measurement of volumetric flow can get compensation once it needs. Then no re-calibration meter factor needed if damaged parts be exchanged Wide application for steam, gas, liquid

Technical Specifications:

Size: DN15 ~ DN500 Medium: Liquid / Saturaed steam, Superheated steam / Air / gas Accuracy: ±1.0% for liquids, ±1.5% for gas / ±2.5% for inserted Repeatability: ±0.33% for liquids, ±0.5% for gas / ±0.83% for inserted Rated Pressure: 1.6MPa (2.5~6.4MPa for special) Signal Output: Three wires voltage pulse, low level <2V, high level >6V       Two  wires standard current 4 ~ 20mA      RS-485 / Hart / ModBus Power Supply: 24V DC / Lithium Battery / Double Power Supply (24V DC, Lithium Battery) Installation type: Flange Clamp / Fixed Inserted / Adjustable Inserted Protection Grade: IP65 / IP68 Explosion Proof: Exd II BT4 / Exib II CT4 Fluid
KTLU Vortex Flow Transducer
No moving parts, simple structure
Wide application
Wide measuring range
Long service life

temperature: -40 ~ +250oC (standard) / +100~ +350oC (high temperature)

Established in 1993, Shanghai Kent Instrument Co., Ltd. is a professional manufacturer of flowmeter with our own R&D department. Our products include KTLU, KVFN Vortex Flowmeters, KTLDE Electromagnetic Flowmeters, KVAF Intelligent Metal Variable Area Flowmeters, KVCF V-Cone ...[Read More]
