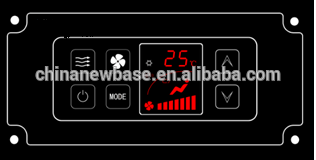

Electrical bus air condition controller cabinet climate control is applies to bus internal climate controller.
1.Detailed Product Description:
Technical data | CK20118212 |
Power supply | 24 (DC20V-DC32V) |
Power consumption | 3w |
Current | Max.200mA |
Dimensions(mm) | 150x60x44 |
Input | 1)Return air inlet temperature sensor (25鈩?Rb=5K,B=3274)
2)Defrost temp. sensor (25鈩?Rb=5K,B=3274)
3)Pressure switch(switch off is fault, Negative is normal)
4)ACC power(Backlight power,voltage detection ) |
Output | 1)Fan speed low control 2) Fan speed medium control 3) Fan speed high control 4) Compressor control 5) Fresh air control |
Display | LED(red) |
Ambient temperature | -30°c—80°c 5%-95%RH Non-condensing |
Storage temperature | -10°c—70°c 5%-95%RH Non-condensing |
Display precision | Set temp. for dual digit display, accuracy 1 °c; Interior & Exterior temp. for dual digit display, accuracy 1 °c; |
Temperature test standard | Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2 °c ,defrost off at 7°c |
Faceplate level | IP54 |
EMC level | EN50081&EN50082-2 |
Security level | Applied to EN61010-II,Pollution degree :II |
Weight: | 400g |
2.Main functions:
CK20118212 controller is applied to the bus air conditioning interior climate control, it ould realize the full-automatically control,cooling,fresh air,power-lost memory,error alarm,interior temp.display,defroster temp. query etc.
The shift function
Mode button: Press this button for more than 3s,the controller would give out three warning tone. ,the setting temp. will display 88,and the system enter into mandatory cooling state;press the button except for the fan volume button to relieve the mandatory cooling state.
Temp. - button: press for more than 3s,after the controller would give out three warning tone,the setting temp. Display defrost temp.,the system return to the original working state after 3s.
3.Drawing dimension:
