Product Name:SMS Data Transmission Android/ IOS APP Remote Control Intelligent Wireless Home Burglar Alarm Security System

SMS Data Transmission Android/ IOS APP Remote Control Intelligent Wireless Home Burglar Alarm Security System

Application

Saful

Product Description:

OEM No/Model: GSM-G2

SMS data transmission Android/ IOS APP remote control intelligent  wireless home burglar alarm security system manual

Characteristics
1.6 kinds of languages
2.touch key,mobile remote
3.Home mode,Delay alarm,intercom
4.Built-in siren,Record voice for 10 second

Introduction
The alarm system adopts SMS data transmission and voice platform of GSM network to send control command and receive alarm message remotely. The system can be armed according to users requirements. When a signal is detected by sensors, the sensors will send alarm signal to alarm host immediately. Then the alarm host will send alarm SMS to preset mobile phone numbers, and meanwhile dials its preset telephone/mobile phone numbers automatically.In addition, user can dial the number in the alarm host to remote control the host, such as arm, disarm etc.

Specifications
1. Wireless frequency: 315MHz / 433MHz;
2. GSM frequency: 850/900/1800 / 1900MHz
3 Alarm response time: 8s (GSM signal in normal)
4 Power requirements
Input: AC 220V 50Hz / 60Hz Output: DC 12V / 1A
Working consumption: <0.6W
Backup battery: DC7.4V / 850MA
Backup battery working hours: 10 hours
5 Working conditions
Temperature: -20 ~ +55 degree
Humidity: 90% (non-condensation)
6 Size: 187mm (L) × 130mm (W) × 27mm (H)
7 Record Time: 10s

Features
1. Control by iPH and Android APP
2. ARM CPU
3.Touch keypad on alarm panel enable to arm/disarm/home mode
4. Encoding: Learning code
5. Two-way communication
6. Direct dial phone calling.
7. 24 wireless zones, 6 fire alarm zones, 6 panic buttons, 2 wired zones and 14 remote controllers
8. Support to switch 6 voice and languages (English, Russian, Spanish, German, French and Chinese)
9. Setup 3 numbers for SMS, 3 numbers for calling
10. Delay alarm function (0-60 seconds optional)
11. Siren ringing time optional (0-254 seconds or keep sound)
12. Wireless transmission for wireless siren, able to control 99 wireless sirens
13. Support 2 routes home appliance control switch
14. Enable control the alarm via SMS and phone keypad
15. Home mode function
16. Record voice for 10 seconds
17. External power failure/recovery alarm function (optional)
18. Siren prompt when arm/disarm via remote controller
19. SMS prompt when arm/disarm via remote controller
20. Wireless transmission to control 2 wireless relay outputs

Schematic diagram

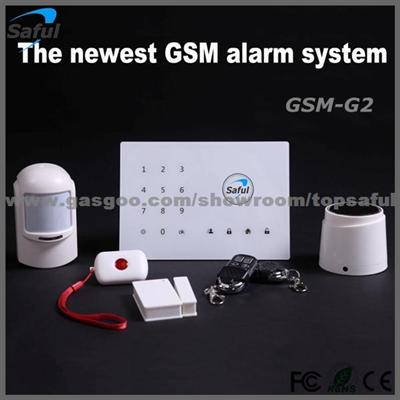

Real picture show
