Quick Details

• Warranty:

  3years

• Place of Origin:

  Qingdao China

• Brand Name:

  QDMY

• Model Number:

  QDMY-8020 QDMY-8023 QDMY-8027 QDMY-8032

• Name:

  2 post double car parking lift

• Place of Origin:

  Qingdao China

• Samples:

  Charge

• Sample Price:

  1850

• Delivery Time:

  30days

• Packing:

  Export Standard Packing

• Delivery Port:

  QINGDAO

• Max. Production Capacity:

  3000sets/Month

• Export Ratio:

  11% - 20%

• OE Experience:

  No

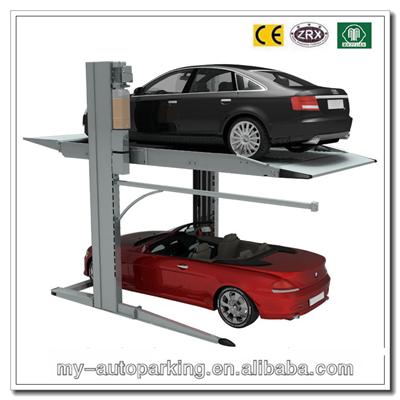

Product Name:Cheap And High Quality CE Double Car Parking System Multi-Level Car Storage 2 Post Car Parking Lift

Cheap And High Quality CE Double Car Parking System Multi-Level Car Storage 2 Post Car Parking Lift

Application

Sedans or Suvs

Product Description:

Cheap And High Quality CE Double Car Parking System Multi-Level Car Storage 2 Post Car Parking Lift

Product Specifications:

Name: Two Post Simple Parking Lift
Model No.:
1. QDMY-8020( Car Weigt: 2000kg);
2. QDMY-8023( Car Weigt: 2300kg);
3. QDMY-8027( Car Weigt: 2700kg);
4. QDMY-8032( Car Weigt: 3200kg);
Size of car (L/W/H):  5000mm*1850mm*1550mm (Sedan)
                                     5000mm*1850mm*2050mm (SUVs)
Mode of Drive: Motor or Hydraulic(Optional)
Hydraulic Power/Lifting Speed: 4kw / 8-12m/min
Motor Power/Lifting Speed: 2.2kw / 5.6m/min
Safeguard devices: Fixed anti-fall Frame
Car Platform: Wave Galvanized Plate
Other Parts Treatment: Zinc Spray and High-grade Anti-Corrosion Paint
Modes of operation: Keys/ Manual Buttons
Certificate: CE & ISO9001
HS CODE 842890200
Guarantee Term: 12 months for eletrical key parts, 3 years stucture for free.
Working Principle: There are 2 levels of upper and down spaces. The car can go into and out of the down level spaces directly by lifting and sliding movement. When the space in the ground level is spared, the space in the upper level will fall to ground. Then the car will go out and in freely.
Characteristics: Cheap price but very high quality;
Nice looking with elegant appearance;
Easy to operate with a key or manual buttons;
Save land area and take full use of parking space;
It can achieve multi-units together to raise more parking numbers;
Fine movable function to change position to apply any sites;
Wide way of passage for cars going in and our conveniently;
Easy to install and very low cost of maintenance.
Application: Residential Area, Basement Parking Lot, School, Hotel, Office Buildings, etc...
Other Information: Term of Trade: FOB QINGDAO (by sea)
Payment: 100%TT for sample order;
                   30%TT as deposit, and 70%TT for container order;
Lead Time: 30days
  Please send your inquiry and leave you email, we will send you the detailed quoation list. We are looking forward the opportunity to do business with your esteemed company.
