Quick Details

• Voltage:

  12v

• Power:

  3w

• Warranty:

  1years

• LED Display Color:

  1Colors

• Sensor detect distance:

  10m

• Resolution:

  420dpi

• Lens Angle:

  120℃

• Minimum Illumination:

  Lux

• Camera Resolution:

  640*480

• black white:

  silver

• Place of Origin:

  Shen Zhen

• Samples:

  Charge

• Delivery Time:

  Within 30 Days

• Packing:

  Case

• Delivery Port:

  Shenzhen

• Max. Production Capacity:

  30000 Sets A Month

• Export Ratio:

  91% - 100%

• OE Experience:

  No

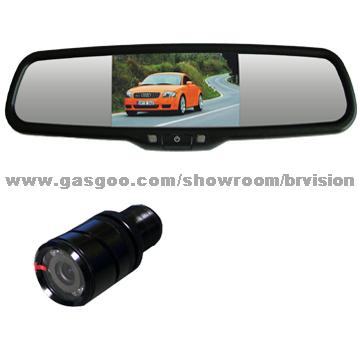

Product Name:Rear View Mirror Monitor 4.3

Rear View Mirror Monitor 4.3

Application

car

Product Description:

 -4.3" digital TFT LCD monitor
- High resolution video rearview camera
- 5M extension cable with RCA connector
- Car rearview system

Monitor Specifications:

- Screen size: 4.3" digital TFT-LCD
- Display Format: 480 x RGBx 272 Dot
- System: PAL/NTSC
- One video input
- Brightness: 300cd/m2
- Operation Temperature:  -20°~70°
- Temperature Range  Storage -30°~80°
- Power consumption: 2W
- Power requirement: DC 12V

Camera Specifications:

- Image Device: 1/3" CMOS image sensor
- TV System:  NTSC/PAL
- View Angle: 170°
- Waterproof design
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Resolution: 420TV lines
- Minimum Illumination: 0.01Lux
- Video Output: 1.0vp-p, 75Ohm
- Gamma Consumption: 0.45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20¡æ to +70¡æ RH95%Max
- OmniPixel technology for low-light performance
