Quick Details

• Voltage:

  12v

• Frequency :

  900/1800/850/1900Mhz

• Place of Origin:

  China

• Samples:

  Charge

• Sample Price:

  15usd

• Delivery Time:

  3days

• Packing:

  Neutral Carton

• Delivery Port:

  Shenzhen

• Max. Production Capacity:

  1000pcs/Month

• Export Ratio:

  91% - 100%

• OE Experience:

  No

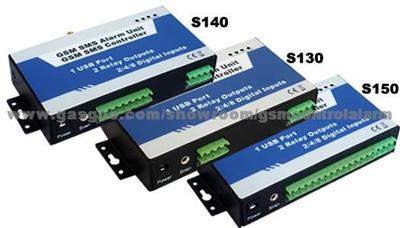

Product Name:Gsm Sms Controller-alarm S130 S140 S150

Gsm Sms Controller-alarm S130 S140 S150

Application

Kingpigeon

Product Description:

OEM No/Model: S150

Remote Controller S130/S140/S150 work as a wireless remote switch or Automation by GSM network.Also called GSM Remote Controller in industry area.

1.Wireless remote controller work by GSM Qua-band Network
2.Lighting/Pump/Generator Remote switch controller
3.Wireless GSM Switch 2/4/8 Inputs & 2 Relay Outputs >>>>>>SMS Controller Alarm, S130 S140 S150 used for:
>>>GSM Water leak alarm,
>>>GSM Humidity alarm;
>>>GSM Automation System;
>>>Power Station,Transformer,Regulator,Stabilizer monitoring and control;
>>>Vending machine controller;
>>>Power facility control and alarm;
>>>Pump,Motor,Tank,Generators monitoring and switch control. The GSM SMS Controller-Alarm S130 S140 S150  is a universal GSM Remote Control switch and GSM Alarm Unit. The GSM SMS Controller-Alarm S130 S140 S150 provides 2/4/8  digital inputs(NC/NO/EOL); The GSM SMS Controller-Alarm S130 S140 S150  provides 2 relay output(3A 240VAC), one is link-output relay, special for switch on or off appliance while the system alarm, another is independent output relay, it can be switched on or off by SMS commands. The GSM SMS Controller-Alarm S130 S140 S150 is very easy for setup via USB Port to PC. The GSM SMS Controller-Alarm S130 S140 S150  allows you to monitor and control an alarm or remote stations or equipments or machines by SMS. The GSM SMS Controller-Alarm S130 S140 S150 is a universal GSM Remote Control switch and GSM Alarm Unit. it provides 2/4/8 digital inputs, 2 relay outputs(3A/240VAC, one is link-output relay, special for switch on or off appliance while the system alarm, another is independent output relay, it can be switched on or off by SMS commands.), and USB Serial Port. It allows you to monitor and control an alarm or remote stations or equipments or machines by SMS. GSM SMS Controller & Alarm Features:
1 relay output (240VAC/3A) can be switched ON/OFF by sending a SMS text;
1 relay output (240VAC/3A) can be switch on 0-120mins if any inputs triggered;
2/4/8 Alarm logic inputs, NC or NO and EOL is optional;
3 SMS Alert numbers and 5 auto-dial numbers can accept to the alarm message;
Two-way voice communication by external microphone and speaker;
Supports armed, disarmed, inquiry status, switch ON or OFF relay output by SMS Commands;
Password protection, prevents unauthorized user;
Configuration from PC Programmer software via USB port;
Time stamped alarm messages;
Backup rechargeable battery inside, runtime more than 24hours;
Operate from anywhere, anytime;
Based on GSM Network Qua-band(*Optional), applied to many applications. The GSM SMS Controller & Alarm suitable for:
1.Security Alarm System applications;
2.Supervision and monitoring alarm systems;
3.Automatic monitoring system;
4.Vending Machines security protection;
5.Pumping Stations, Tanks, Oil or Water levels;
6.Buildings and Real Estate;
7.Weather Stations;
8.River Monitoring and Flood Control;
9.Oil and gas pipelines;
10.Corrosion protection
11.Temperatures, water leakage applications;
12.Wellheads, boat, vehicle;
13.Energy saving, street lights control system;
14.Valve controls;
15.Transformer stations;
16.Unmanned machine rooms;
17.Control room application;
18.Automation System, M2M;
19.GSM Access Control System, GSM Gate Opener, etc. S130/S140/S150 Specifications:
GSM Frequency:  Default 900/1800/1900MHz, Optional 850/1900/1800/1900MHz
Power adapter:  DC 12V/1.5A  Power Current:  Max:500mA    Type :50mA
SIM Card     :  Supporting 3V SIM Card
GSM Antenna  :  50 Ω SMA Antenna interface,
Serial       :  USB Port
Input Type   :  S130: 2 Dry Contact, NC,NO,EOL
                S140: 4 Dry Contact, NC,NO,EOL
                S150: 8 Dry Contact, NC,NO,EOL
Output Type  :  2 Relay Output, 240VAC/3A, Relay inside.
Backup-Power : 3.7V  1200MAh  LI-ION battery
Temperature  :  -20°C ~ +60 °C
Humidity     : Relative humidity 20~95% (condensation free)
Dimension    :  LxWxH 153x86x28mm
Net Weight   :  320g
** Electrical Characteristics /25°C Standard Package list:
GSM Controller * 1
Power supply adapter * 1 (12V 1.5A)
USB Cable * 1
CD (Pc programmer tool) * 1
GSM Antenna * 1 Optional Accessories:
Water Overflow Level Sensor,
Oil Overflow Level Sensor,
Water Leak Sensor,
Temperature Sensor,
Door Sensor,
PIR Motion Sensor,
Smoke Sensor,
Gas Leak Sensor,
Glass Break Sensor,
Shock Sensor,
Power failure sensor, etc. King Pigeon is a professional GSM Alarms, GSM Alarm Systems, GSM SMS Alarm, GSM SMS Controller,GSM Automation system,GPRS Data Logger,Temperature Logger;Power Monitoring System,Wireless GSM Home Alarm system, GSM M2M products Manufacturer!Based on more than 7 years experiences,King Pigeon provide professional high quality and reliable GSM/GPRS alarm & control products and OEM/ODM service for the market in worldwide. Your any requests would be much appreciated, please do not hesitate to contact us.
