Quick Details

Product Name:Tango Key Programmer

Tango Key Programmer

Application

Chery, Citroen

Product Description:

OEM No/Model: Vw

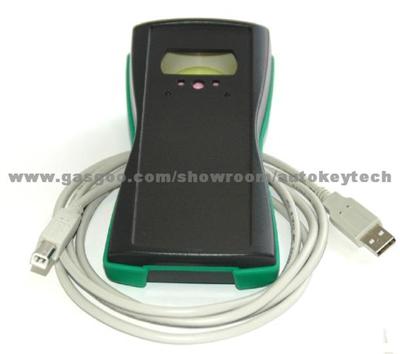

Tango Key Programmer

The TANGO programmer is the next generation of transponder programmer which is continuously developed to cover, read, and write the latest transponders used in the newest vehicle immobiliser technologies.

Hardware
The device has an ergonomic design with high mechanical characteristics of IP65 class conforming to the DIN EN 60529 standard
Enclosure is made of 3mm ABS-plastics with a rubber shock-proof damping seal which simultaneously is a decor element
Power is derived from the USB cable, so does not require an external power source
The TANGO uses a specific type of driver, which avoids conflicts with other devices working through virtual ports
The hardware design accommodates keys and transponders of all sizes
Dimensions: length 160mm; width 80mm; height 50-30mm

Specifications
1.Tango Key Programmer with basic software
2.Support multiple vehicles
3.Update free with one year
4.Support best service

Detailed
Attention:
After generating a new transponder with TANGO Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car! It will start the car directly, even on new FIAT CODE 2 system, also used in PSA Group vehicles! Only you have to write the new file back into the immobilizer system!

List of supported transponders:

Philips transponders:
PCF7930-31 writing, reading
PCF7935 writing, reading, shadow memory, crypto calculator
PCF7936 writing, reading, modes password, crypto, Manchester & Biphase encodings
PCF7941 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7942 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7943 transponder, remote, Manchester & Biphase encodings
PCF7944 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7945 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7946 transponder, remote, Manchester & Biphase encodings
PCF7947 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7952 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7961 transponder, remote, Manchester & Biphase encodings
Auto switching between PCF7936-PCF7961 windows if invalid type detected.
Autodetect manchester / biphase

Temic transponders:
Temic 11 reading , writing to T5
Temic 12 reading , writing to T5

Megamos transponders:
Megamos (13) reading , writing to T5 , emulating on PCF7930-35
Megamos (48) reading, writing, PIN, unlock by PIN, full range of memory contents, crypto calculation
Megamos CRYPTO-2 (8E) read ID, read/write EEPROM, write Cryptokey

Texastransponders:
Tiris (4C) reading
Tiris (4D) DST crypto reading, writing, crypto calculator
Tiris (4E) DST crypto reading, writing, crypto calculator
Tiris (8C) reading

Atmel:
TK5551M (T5 replacement)
SAAB reading , writing to T5
The product is in working out stages, therefore the list of the supported transponders will be developed later.


Free key makers:

for ALFA ROMEO
145 (1995-2001)
146
155
156 (1998-2001)
164
166 (1998-2003)
GTV
Spider
for AUDI
Immobox 4A0 953 234
Immobox 4B0953234 (ID48)
A2 VDO 1999-2001 93C86, ID48
A3 VDO 1999-2001 93C86, ID48
A3 Magneti Marelli ID48
A4 VDO 1999-2001 93C86, ID48
A4 Magneti Marelli 1998-2001 ID48
A6 VDO 1997-1998 93C66, ID13
A6 VDO 1998-2001 93C66, ID48
A6 VDO 1998-2001 93C86, ID48
A6 Magneti Marelli 1998-2001 ID48
A8 VDO 1999-2001 24C17, ID48
TT Magneti Marelli ID48
for BMW
EWS1
EWS2
EWS3
EWS4

All key makers for EWS allow to restore data in a damaged key.
Accessible from any EWS key maker: click Explore Key and follow instructions.

EWS Key Viewer. Allows to view the data of any for BMW EWS key.
No dump needed. The vewer displays the key No., mileage counter, VIN, transponder type, EWS model.

Unlike the analogous makers who have been built in Gambit, the new makers support models EWS for the Arabian countries, all makers allow to disable activated function Lock (disabled key). Besides the maker for EWS4 has possibility to work with ten keys while the Gambit supports only four first keys.

Key maker usage
Key maker usage consists of a four steps. The 4-th step is additional and depends on a vehicle model.
1. Open an immobilizer dump file.
2. Choose number of the key you want create.
3. Place a transponder into the coil and click the WRITE button.
4. In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer
