Quick Details

• Place of Origin:

  NIngbo China

• Samples:

  Charge

• Sample Price:

  300

• Delivery Time:

  20

• Packing:

  Carton

• Delivery Port:

  Ningbo

• Max. Production Capacity:

  5000

• Export Ratio:

  81% - 90%

• OE Experience:

  No

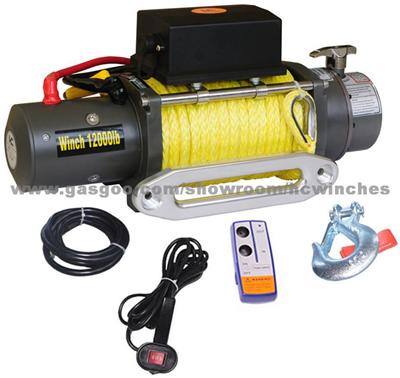

Product Name:Electric Winches 12000lb Toughest Gears

Electric Winches 12000lb Toughest Gears

Application

Toyota

Product Description:

OEM No/Model: 7700881

191:1 gear ratio keyway cam clutch, toughest gears made of cold extrusion 20Cr steel, dyneema rope, 100% pulling&function test.

SC12.0WX  12V or 24V

12000LB Heavy Duty Electric Winch

with key way cam clutch, enaged and disengaged both in two directions.

new gear box, gear ratio 191:1

high quality polished and anodized aluminum fairlead, no scratching or color fading

100% testing on pulling capacity and function



Specification:

Rated line pull: 12000lb (5443kg) single line

Motor: 6.0hp/4.5kw, series wound

Control: Remote switch, 12ft (3.7m) lead

Gear train: 3 stage planetary

Gear reduction ratio: 191: 1

Clutch: Keyway Cam

Braking: Automatic load-holding brake

Drum size: Ø2.5*L8.8 (Ø63.5mm*L224mm)

Dyneema rope: Ø10.0mm*28m, breaking pull is 19000lb

Fairlead: Polished and Anodized aluminum fairlead

Wireless Remote control: Optional

Battery recommended: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finishing: Black, dark grey coating

Overall dimension (L*W*H): 538*160*214mm

Mounting bolt pattern: 10*4.5 (254*114.3mm)

N. W. /G. W.: 37/39KG

Packing: foam package, 1PC/CTN



Winch Features

1. Heavy duty winch, 6.0 hp motor, delivers plenty of power

2. 3 planetary gears, cold extrusion steel gears, for superb strength and longer cycle life

3. Waterproof, sealed winch and solenoid

4. Flexible clutch bar, very easy to full engaging and disengaging. Completely smoothy and efficient for winching

5. Dynema rope 19000lb breaking pull (8700kg) with stainless rope thimble and heavy duty hook

/Galvanized steel cable,stainless thimble, removeable clevis pinned latched hook

6. Aluminum fairlead, polishing and anodization, very smoothy furface and no color fading forever

/ 4-way roller fairlead, steel die-casting, surface galvanized and powdering

7. 100% pulling capacity testing to ensure winch quality. Strong Foam packages for better delivery safety.



We manufacture kinds of electric winches like 4x4 winch, ATV winch, boat winch designed to meet your toughest pulling demands. Our winches are 100% function and pulling tested. Featured with waterproof, heavy duty, efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings, and or "Comfort Grip" handle of ease of cranking. All gears are cold extrusion steel for superb strength and longer cycle life. Fine powder finishes provide excellent corrosion resistance in all environments.



Welcome you to contact us for business cooperation!

HC 4x4 Winches and Accessories, produced by Ningbo Haochuang Precision Machinery Co., Ltd, are made towards high quality standard both in design and function. We have strong backing of machinery process; many winch parts are made in our own factory such as gearbox body parts, gears plates, ...[Read More]
