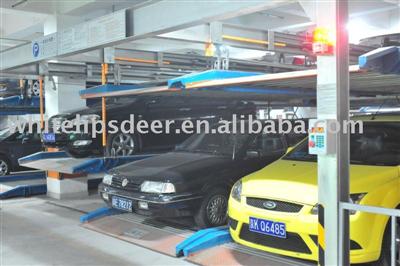

Product Name:high quality STM-210 PUZZLE 2-LAYER MECHANICAL PARKING SYSTEM

high quality STM-210 PUZZLE 2-LAYER MECHANICAL PARKING SYSTEM

Application

universal

Product Description:

STM-210 PUZZLE 2-LAYER MECHANICAL PARKING SYSTEM

Performance Parameter List

Driving

Motor and chain

Motor

Lifting up-and-down: 3HP(2.2KW)  Cross-sliding: 1/2HP(0.37KW)

Speed

Lifting up-and-down: 4m/min   Cross-sliding: 8m/min

Operation

Button operation

Control

PLC Control

Power supply

Three phase five wire system  380V/50HZ 4KVA

Security Devices

Caution device in operation

Anti-falling device

Emergency stop device

Up-and-down limit protector

Electric current overload protector

Cross-sliding limit protector

Entrance optoelectronic detector

Lifting location button

Car wheel stop lever

Power off braking device

Cross-sliding location switch

Security interlock device

Chain protection sleeve

Over length detector

 This model can be designed into triplet or decupled to make 5 parking spaces or 19 parking spaces.

 Entirely steel structure

Suitable established in basement or underground car parks，and a basement clear height of 3.6 meters is required. Also suitable established outdoors, but a flashing board is required

Engineering Requirements Ground surface shall be reinforced concrete structure to fix equipment;Ground surface concrete shall be smooth, and the height difference should be within ±5mm; If equipment is established outdoors, a flashing board is required;    A clear height of 3600 mm is required;Enough power resource is required during engineering period;

As the rapid improvement of people's living standard, autos have become one of the necessaries of our daily life. "Finding a cozy home for our autos, offering enough parking spaces and establishing secure car parks for so many autos" have become our common goals.
