Quick Details

• Surface Treatment:

  Polishing

• Standard or Nonstandard:

  Standard

• G.W:

  45kg

• Certification:

  ISO9001

• Power:

  Hydraulic

• Driving Type:

  Magnetic

• Cold Style:

  Cold Style

• Place of Origin:

  China

• Samples:

  Free

• Delivery Time:

  Within 20 Days

• Packing:

  Wtih Bubble And Woven Bags

• Delivery Port:

  Qingdao

• Max. Production Capacity:

  15000

• Export Ratio:

  81% - 90%

• OE Experience:

  No

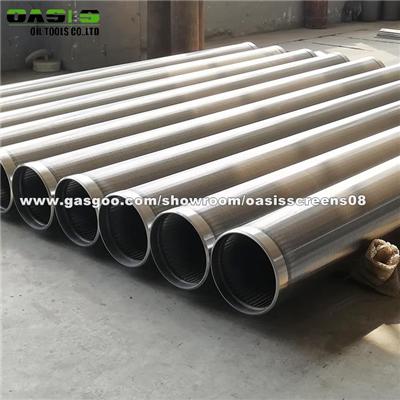

Product Name:Stainless Steel 304 Wire 10 Slot Water Well Johnson Screens

Stainless Steel 304 Wire 10 Slot Water Well Johnson Screens

Application

well drilling auto car

Product Description:

What does a 304 stainless steel wire 10 slot water well screen means to your well?

It is necessary to use 304 stainless steel wire 10 slot well screen to keep loose sand and gravel from collapsing into the borehole. The water well screen can support the borehole walls while allowing water to enter the well, casing unslotted is placed above the screen to keep the rest of the borehole open and serve as a housing for pumping equipment. 10 slot well screen is the most important single factor affecting the efficiency of a well, so we also call it "heart of a well".

Application of stainless steel 304 wire 10 slot water well screen:

The 304 stainless steel 10 slot well screen is widely used throughout the world for water, oil, and gas wells, is the dominant screen type used in the water well industry.

Production Methods:

1.Winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods.

2.The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

3.Slot opening are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burns and cuttings.

4.Process: Stainless steel Johnson screen filters will be polished.

5.Package: inner bubble bag and outer woven bag. Wooden box can be supplied if needed.

If you are satisfied with our 304 stainless steel wire 10 slot water well screen and willing to know price and more information, we appreciate your following questions when you place an order:

1, What's the material you are going to deal with, stainless steel or carbon steel?

2, What's the OD, length? Diameter from 30-600mm,length from 1-5.8m

3, What's the slot size of OASIS well screen?

4, What's the depth of the well or tensile strength of the screen that you need?

If you are interested in our 304 stainless steel wire 10 slot water well screen,please contact with Aicha for more information.
