Product Name:Pressure Balanced Cage Type Control Valve

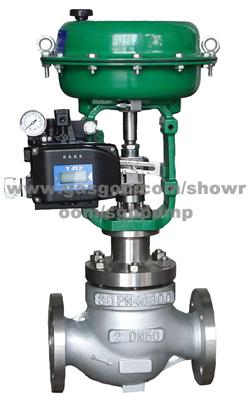

Pressure Balanced Cage Type Control Valve

Application

Changan, Changfeng

Product Description:

Pressure Balanced Cage type Control Valve Type: Straight-through, cast globe valve
Size: 1-1/2'', 2'', 2-1/2'', 3'', 4'', 6'', 8''
Pressure Rating: ANSI 125 ~ ANSI 600 (PN16~PN100, JIS10K~JIS40K)
Body Material: Carbon steel, Stainless steel, Alloy steel
Operation: Pneumatic diaphragm actuator, Pneumatic piston actuator, Electric actuator
OVERVIEW
Model TT-HCB Pressure Balanced Cage Type carbon steel Control Valves are designed for heavy duty services. The valve body, having a S-shape flow passage that features low pressure loss and a stabilizer that regulates turbulent flow around the cage, allows a large flow capacity, range ability, and high accuracy flow characteristics.
The valve plug is structured in a pressure-balanced type that permits flow control of a high differential pressure with a small actuating force. The actuator integrated with simplest mechanisms utilizes a compact yet powerful diaphragm actuator loaded with multiple springs.
The model HCB valves are widely applicable for reliable control of high or low temperature, high pressure or high differential pressure process lines where dynamic stability, low noise, and cavitation/flashing resistance are required.
SPECIFICATIONS
Body Type: Straight-through, cast globe valve
Nominal size: 1-1/2, 2, 2-1/2, 3, 4, 6, 8
Pressure rating:
 JIS 10K, 16K, 20K, 30K, 40K
 ANSI Class 125, 150, 300, 600
 JPI Class 125, 150, 300, 600
End connection
 Flanged end(FF, RF, RJ, LG)
 Welded end: SW (1-1/2, 2 inches), BW (2-1/2 to 8 inches)
Material
For body/trim material combinations and operating temperature ranges, refer to Table 1 .
Bonnet
 Plain bonnet (-17 to 230 °C)
 Extension bonnet type 1 (-45 to -17 °C and 230 to 566 °C)
 Extension bonnet type 2. Integral cast type (-100 to -45 °C), Welded type (-196 to -100 °C)
 Bellows type
For operating temperature and pressure range, refer to Figure 3.
Note) Take care not to exceed the operating temperature ranges specified for respective materials.
Gland type: Bolted gland
Packing / Grease
 Grease not provided
When V-shaped PTFE packing or PTFE yarn packing is used.
 Grease provided: When graphite packing is used.
Gasket Type: Combination of serrated type and spiral wound type(integral cage), Serrated type (split cage)
Material
Stainless steel (SUS316, SUS316L, SUS329J1), copper, aluminum
