Quick Details

• Weight:

  3.8kg

• Place of Origin:

  China

• Samples:

  Not Available

• Delivery Time:

  5-10 Days After Your Payment

• Packing:

  Carton Box, Plastic Bags, Wooden Cases Or As Your Requirement

• Delivery Port:

  Qingdao,Ningbo,Shanghai,Shenzhen

• Max. Production Capacity:

  1000sets

• OE Experience:

  No

Product Name:DZ 04 A01 Automatic Rebar Tier Building Construction Equipment

DZ 04 A01 Automatic Rebar Tier Building Construction Equipment

Application

china coal

Product Description:

chinacoal12
m.chinacoalintl.com DZ 04 A01 Automatic Rebar Tier Building Construction Equipment   Rebar tying machine widely usable in constructional. Rebar tying machine serves 3-5 workers.

Rebar tying machine Benefit:
· Simply to work
· Economical (one machine can relay 3-5 workers)
· Effective fast work (to tie one knot youll need 1,6 second)
· Functional easy change brackets, which can tie different size rebar
Engineering data:
· Spool wire diameter 1 mm;
· Spool wire length 45 m (with one spool can make 120-200 knots);
· Once charged accumulator can tie 750 knots;
· Tying rebar diameter can be 12- 64mm;
· Two loops for knot;
· Weight of prepared machine 3,8 Kg;
· Accumulator can be charged during 30 min.

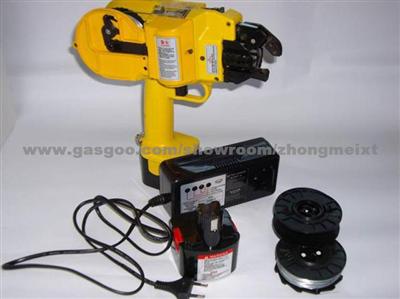

Package comes with: rebar tying machine, 10 spool wires, 2 accumulators, 1 tickle charger, 1 claw.
Main Parameter

Specifications of the Bracket: Using the right size bracket increases wire usage, tying speed & decreases clearance
 [26#]bracket ties maximum 3#×4# rebars
 [32#]bracket ties maximum 6#×6# rebars
 [51#]bracket ties maximum 8#×8# rebars
 [64#]bracket ties maximum 10#×10# rebars

Note: Our offer of automatic rebar tier DZ-04-A01 normal match #32 bracket 1pc only if the buyer haven't special request.
DZ-04-A01 with #64 bracket could tie max 10#X10# rebars,  max 64mm rebars
